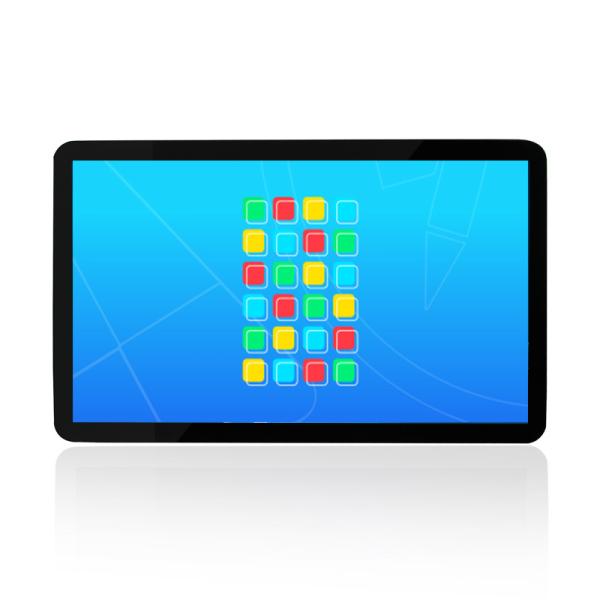

21.5Inch 250cd/M2 Interactive Touch Screen Kiosk

    Buy cheap 21.5Inch 250cd/M2 Interactive Touch Screen Kiosk from wholesalers

    Buy cheap 21.5Inch 250cd/M2 Interactive Touch Screen Kiosk from wholesalers
    • Buy cheap 21.5Inch 250cd/M2 Interactive Touch Screen Kiosk from wholesalers

    21.5Inch 250cd/M2 Interactive Touch Screen Kiosk

    Ask Lasest Price
    Brand Name : TouchDisplays
    Model Number : 2151E-IOT
    Certification : CE/FCC/RoHS
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 2000 units per month
    • Product Details
    • Company Profile

    21.5Inch 250cd/M2 Interactive Touch Screen Kiosk

    21.5 INCH STANDING INTERACTIVE KIOSK PANEL LCD 10 POINTS TOUCH SCREEN DIGITAL SIGNAGE ADVERTISING DISPLAY


    21.5 inch touch all in one adopts the cutting-edge touch technology supporting both Android and windows systems, through USB port enabling to experience projected capacitive multi-touch technology. Innovative touch technology deliveries a intuitive operation experience, supporting finger, stylus and others touch method to proceed operation whether zooming our and in, opening window or application switching, all are operable by simply touching the screen, which not only improving the work efficiency but also delivering a resilient usage requirement.

    21.5Inch 250cd/M2 Interactive Touch Screen Kiosk

    21.5Inch 250cd/M2 Interactive Touch Screen Kiosk

    Bezel-free screen

    With Bezel-free screen design applies on 21.5’’ touch all in on, all the images under fingertips become so vivid and animate, releasing more for screen space expands more extensive view.

    Extremely powerful and low consumption fanless processors;

    Flexible CPU options for different Android versions;

    Wide range from Intel j1800 to i7 latest 7th generation for windows.

    2151E Touch All In One PC runs critical applications fast, helps you serve your customers even faster.

    Fanless processor thus low consumption and a noiseless surrounding.

    21.5Inch 250cd/M2 Interactive Touch Screen Kiosk
    21.5Inch 250cd/M2 Interactive Touch Screen Kiosk

    21.5Inch 250cd/M2 Interactive Touch Screen Kiosk

    INTERFACE

    Multiple I/O interfaces are offered on the terminal including HDMI/VGA, USB, Rj45, Mic and others. Connect it to all the peripheral devices that meet your business needs.

    21.5Inch 250cd/M2 Interactive Touch Screen Kiosk

    PERIPHERALS

    Performance-optimized technology makes the terminal more valuable to customers, built with high-end computing in mind, to provide business owners with the processing power needed to improve business efficiency and speed up customer services.


    APPLICATION


    21.5Inch 250cd/M2 Interactive Touch Screen Kiosk


    SPECIFICATION


    Model2151E-IOT-F
    Case/Bezel ColorBlackwhite
    Display Size21.5″
    Touch panelProjected Capacitive Touch Screen
    Touch points10
    Touch response time8ms
    TouchAIO Dimensions524 x 46 x 315.5 mm
    LCD TypeTFT LCD(LED backlight)
    Useful Screen Area477.8 mm x 269.3 mm
    Aspect ratio16:9
    Optimal (native) Resolution1920*1080
    LCD panel Pixel pitch0.1875 x 0.1875 mm
    LCD panel Colors16.7 million
    LCD panel Brightness250 cd/m2
    LCD panel Response Time16 ms

    Viewing Angle

    (typical, from center)

    Horizontal±89° or 178° total (left/right)
    Vertical±89° or 178° total (up/down)
    Contrast Ratio3000:1
    output Video signal connectorMini D-Sub 15-Pin VGA type and HDMI type
    Interfaceusb 2.0*4(usb 3.0*2 optional)PCI-E(4G SIM card, wifi and Bluetooth optional)
    Earphone*1Mic*1Com*3RJ45*1
    Power Supply TypeMonitor input interface: +12VDC ±5%,6.0 A; DC Jack (2.5)
    AC to DC power brick input: 100-240 VAC, 50/60 Hz
    Power Consumption: 50W

    ECM

    (Embed Computer Modul)

    ECM3: Intel processor J1900 (Quad-core 2.0GHz/2.4GHz,Fanless)

    ECM4: Intel processor i3-4010U (Dual Core 1.7GHz,Fanless)

    ECM5: Intel processor i5-4200U (Dual Core 1.6GHz/2.6GHz Turbo, Fanless)

    ECM6: Intel processor i7-4500U (Dual Core 1.8GHz/3GHz Turbo, Fanless)

    SATA3: HDD 500G(up to 1TB optional) or SDD 32G(up to 128G optional)

    Memory: DDR3 4G(extend up to 16G Optional)

    CPU Upgrade:J3160 & I3-I7 series 5th 6th 7th optional

    Operation System:Win7Pos Ready7Win8XPWinCEVistaLinux

    ECM9: Cortex-A53 8Core 1.5GHz;GPU: PowerVR G6110

    Rom:1G(up to 2G4G optional);Flash:8G(up to 32G optional)

    Operation System: 5.1 or 6.0

    TemperatureOperating: 0°C to 40°C ;Storage -20°C to 60°C
    Humidity (non-condensing)Operating: 20%-80%; Storage: 10%-90%
    Shipping Carton Dimensions620 x 206 x 456 mm (2 PCS)
    Weight (approx.)Product Actual: 5.1 kg(1 Piece) ;Shipping: 13.2 kg( 2 PCS)
    Warranty Monitor3 years(Except for LCD panel 1 year)
    Backlight lamp life: typical 50,000 hours to half brightness
    Agency ApprovalsCE/FCC/RoHS (UL or GS for Customized)
    Mounting Options75 mm and 100 mm VESA mount
