    250cd/m2 PCAP Industrial Touch Screen PC 1920x1080

    Ask Lasest Price
    Brand Name : TouchDisplays
    Model Number : 2151E-IOT
    Certification : CE/FCC/RoHS
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 2000 units per month
    • Product Details
    • Company Profile

    250cd/m2 PCAP Industrial Touch Screen PC 1920x1080

    2151E Industrial Touch Screen with widescreen


    21.5 inch touch monitor is designed with high resolution image 1080P restoring a true color, and clear experience,offering an enjoyable entertainment, customized USB ports can enable customers free connection with storage or multimedia devices adding the resilience of expansion demand, for public touring information and point of sales system or schooling, 21.5 inch industrial LCD touch screen monitor can deliver users with extremely enjoyable and convenient operating experience.

    250cd/m2 PCAP Industrial Touch Screen PC 1920x1080

    250cd/m2 PCAP Industrial Touch Screen PC 1920x1080

    Features


    • 21.5 inch wide touchscreen with PCAP and multi-touch technology


    • High quality panel with different viewing angles


    • Multiple interface for peripherals


    • zero bezel screen with LED backlight and high resolution.

    3


    • 3000:1 contrast ratio, and 250-nit brightness.



    Standard configuration for 21.5 inch industrial lcd touch screen monitor with windows system incorporates 4Gb DDR3 flash memory, expandable to 32Gb, 60Gb SSD memory, expandable to 480Gb.



    CPU options:
    Option1: Intel processor J1900 (Quad-core 2.0GHz/2.4GHz,Fanless)
    Option2: Intel processor i3-4010U (Dual Core 1.7GHz,Fanless)
    Option3: Intel processor i5-4200U (Dual Core 1.6GHz/2.6GHz Turbo, Fanless)
    Option4: Intel processor i7-4500U (Dual Core 1.8GHz/3GHz Turbo, Fanless)
    Gen. From 4th to 7th for option2~4.

    250cd/m2 PCAP Industrial Touch Screen PC 1920x1080
    250cd/m2 PCAP Industrial Touch Screen PC 1920x1080

    250cd/m2 PCAP Industrial Touch Screen PC 1920x1080

    INTERFACE


    21.5 inch Industrial Touch Screen PC has different kinds of input interfaces like HDMI,VGA,USU, etc connecting various forms of multimedia devices meeting customers with customized setup requirement, making information transmission more diverse and convenient.

    250cd/m2 PCAP Industrial Touch Screen PC 1920x1080

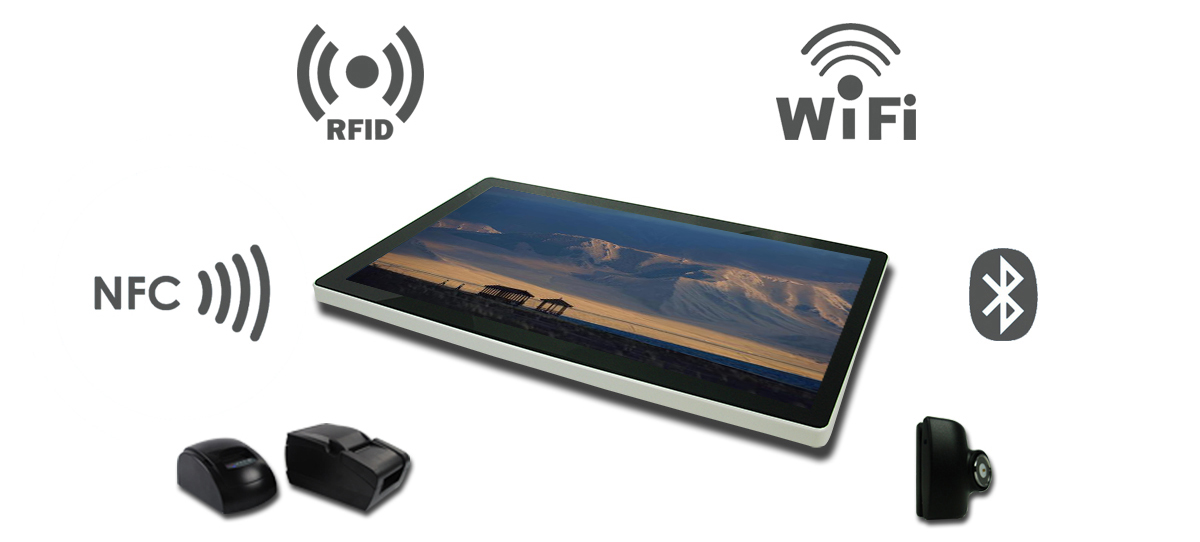

    PERIPHERALS

    Designed wth multiple peripherals i,useful port for USB and wifi cnnections.

    Bluetooth is available for different kinds of uses.

    Scanner and printer can be used conviniently for different kinds if environments.


    APPLICATION

    250cd/m2 PCAP Industrial Touch Screen PC 1920x1080


    SPECIFICATION


    Model2151E-IOT-F
    Case/Bezel ColorBlackwhite
    Display Size21.5″
    Touch panelProjected Capacitive Touch Screen
    Touch points10
    Touch response time8ms
    TouchAIO Dimensions524 x 46 x 315.5 mm
    LCD TypeTFT LCD(LED backlight)
    Useful Screen Area477.8 mm x 269.3 mm
    Aspect ratio16:9
    Optimal (native) Resolution1920*1080
    LCD panel Pixel pitch0.1875 x 0.1875 mm
    LCD panel Colors16.7 million
    LCD panel Brightness250 cd/m2
    LCD panel Response Time16 ms

    Viewing Angle

    (typical, from center)

    Horizontal±89° or 178° total (left/right)
    Vertical±89° or 178° total (up/down)
    Contrast Ratio3000:1
    output Video signal connectorMini D-Sub 15-Pin VGA type and HDMI type
    Interfaceusb 2.0*4(usb 3.0*2 optional)PCI-E(4G SIM card, wifi and Bluetooth optional)
    Earphone*1Mic*1Com*3RJ45*1
    Power Supply TypeMonitor input interface: +12VDC ±5%,6.0 A; DC Jack (2.5)
    AC to DC power brick input: 100-240 VAC, 50/60 Hz
    Power Consumption: 50W

    ECM

    (Embed Computer Modul)

    ECM3: Intel processor J1900 (Quad-core 2.0GHz/2.4GHz,Fanless)

    ECM4: Intel processor i3-4010U (Dual Core 1.7GHz,Fanless)

    ECM5: Intel processor i5-4200U (Dual Core 1.6GHz/2.6GHz Turbo, Fanless)

    ECM6: Intel processor i7-4500U (Dual Core 1.8GHz/3GHz Turbo, Fanless)

    SATA3: HDD 500G(up to 1TB optional) or SDD 32G(up to 128G optional)

    Memory: DDR3 4G(extend up to 16G Optional)

    CPU Upgrade:J3160 & I3-I7 series 5th 6th 7th optional

    Operation System:Win7Pos Ready7Win8XPWinCEVistaLinux

    ECM9: Cortex-A53 8Core 1.5GHz;GPU: PowerVR G6110

    Rom:1G(up to 2G4G optional);Flash:8G(up to 32G optional)

    Operation System: 5.1 or 6.0

    TemperatureOperating: 0°C to 40°C ;Storage -20°C to 60°C
    Humidity (non-condensing)Operating: 20%-80%; Storage: 10%-90%
    Shipping Carton Dimensions620 x 206 x 456 mm (2 PCS)
    Weight (approx.)Product Actual: 5.1 kg(1 Piece) ;Shipping: 13.2 kg( 2 PCS)
    Warranty Monitor3 years(Except for LCD panel 1 year)
    Backlight lamp life: typical 50,000 hours to half brightness
    Agency ApprovalsCE/FCC/RoHS (UL or GS for Customized)
    Mounting Options75 mm and 100 mm VESA mount
