21.5 LED touch monitor possesses 1920*1080 high resolution, 250nits brightness, and 3000:1 contrast ratio with 178° x 178° true viewing angle, displaying delicate and exquisite image quality, matching with HDMI, VGA, RS232, USB, etc. input ports not only meeting the requirements of connecting with various equipment but also making it more time-saving and convenient to customers, 21.5 touch monitor brings a full-equipped multimedia to Hospitality and restaurant for service practitioner.

Features

• Projected Capacitive Multi-touch Technology
• Optional front mount and rack mount bezels
• Fully RoHS compliant
• Mounting options including rear-mount and VESA mount
• LED Backlight and High Resolution 1920 x1080
• Multilingual on-screen display (OSD)

Operational system:
1.Windows/Linux

Standard configuration for 21.5 inch industrial lcd touch screen monitor with windows system incorporates 4Gb DDR3 flash memory, expandable to 32Gb, 60Gb SSD memory, expandable to 480Gb.
CPU options:
Option1: Intel processor J1900 (Quad-core 2.0GHz/2.4GHz,Fanless)
Option2: Intel processor i3-4010U (Dual Core 1.7GHz,Fanless)
Option3: Intel processor i5-4200U (Dual Core 1.6GHz/2.6GHz Turbo, Fanless)
Option4: Intel processor i7-4500U (Dual Core 1.8GHz/3GHz Turbo, Fanless)
Gen. From 4^th to 7^th for option2~4.

2.Android system:
Standard configuration for 21.5 inch industrial lcd touch screen monitor with Android system incorporates 2Gb flash memory, expandable to 4Gb, 8G memory, expandable to 32Gb.
CPU options:
Option2:RK3399 Cortex-A72+Cortex-A53 6-Core 2GHz;GPU:Mail-T860MP4.

INTERFACE

21.5 inch Industrial Touch Screen PC has multiple input interfaces like HDMI,VGA,USU, etc connecting diversified multimedia devices meeting customers with customized setup requirement, making information transmission more diverse and wonderful.

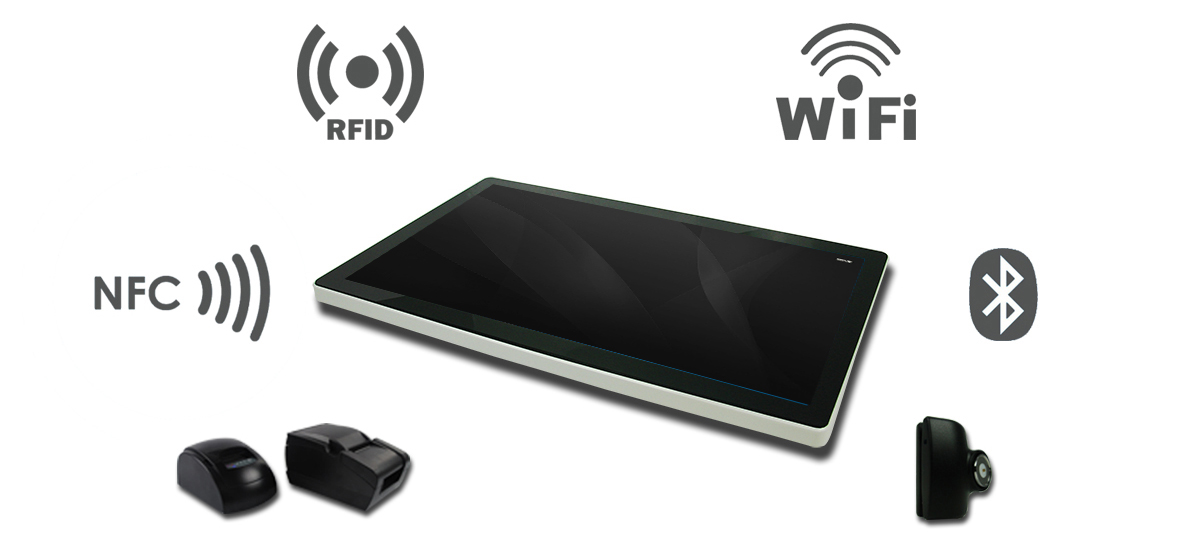

PERIPHERALS

21.5 inch Industrial Touch Screen PC has Multiple I/O Ports and Peripheral Options delivering to customers with varies of scenario plannings and requirements

Support 2 line VFD and 10’’, 11.6”, 15.6” LCD customer display.

More peripherals available like MSR, Camera, RFID, Barcode Scanner, etc.

APPLICATION

Designed specially for retail, hospitality, healthcare, public services and other commercial markets.

Viewing Angle

(typical, from center)

ECM

(Embed Computer Modul)

ECM3: Intel processor J1900 (Quad-core 2.0GHz/2.4GHz,Fanless)

ECM4: Intel processor i3-4010U (Dual Core 1.7GHz,Fanless)

ECM5: Intel processor i5-4200U (Dual Core 1.6GHz/2.6GHz Turbo, Fanless)

ECM6: Intel processor i7-4500U (Dual Core 1.8GHz/3GHz Turbo, Fanless)

SATA3: HDD 500G(up to 1TB optional) or SDD 32G(up to 128G optional)

Memory: DDR3 4G(extend up to 16G Optional)

CPU Upgrade:J3160 & I3-I7 series 5^th 6^th 7^th optional

Operation System:Win7Pos Ready7Win8XPWinCEVistaLinux

ECM9: Cortex-A53 8Core 1.5GHz;GPU: PowerVR G6110

Rom:1G(up to 2G4G optional);Flash:8G(up to 32G optional)

Operation System: 5.1 or 6.0
