FCC 21.5'' Touch Screen Monitor 250cd/M2 For Cash Register

    Buy cheap FCC 21.5'' Touch Screen Monitor 250cd/M2 For Cash Register from wholesalers

    Buy cheap FCC 21.5'' Touch Screen Monitor 250cd/M2 For Cash Register from wholesalers
    • Buy cheap FCC 21.5'' Touch Screen Monitor 250cd/M2 For Cash Register from wholesalers
    • Buy cheap FCC 21.5'' Touch Screen Monitor 250cd/M2 For Cash Register from wholesalers
    • Buy cheap FCC 21.5'' Touch Screen Monitor 250cd/M2 For Cash Register from wholesalers

    FCC 21.5'' Touch Screen Monitor 250cd/M2 For Cash Register

    Ask Lasest Price
    Brand Name : TouchDisplays
    Model Number : 2151E-IOT
    Certification : CE/FCC/RoHS
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 2000 units per month
    • Product Details
    • Company Profile

    FCC 21.5'' Touch Screen Monitor 250cd/M2 For Cash Register

    FCC 21.5'' Touch Screen Monitor 250cd/M2 For Cash Register

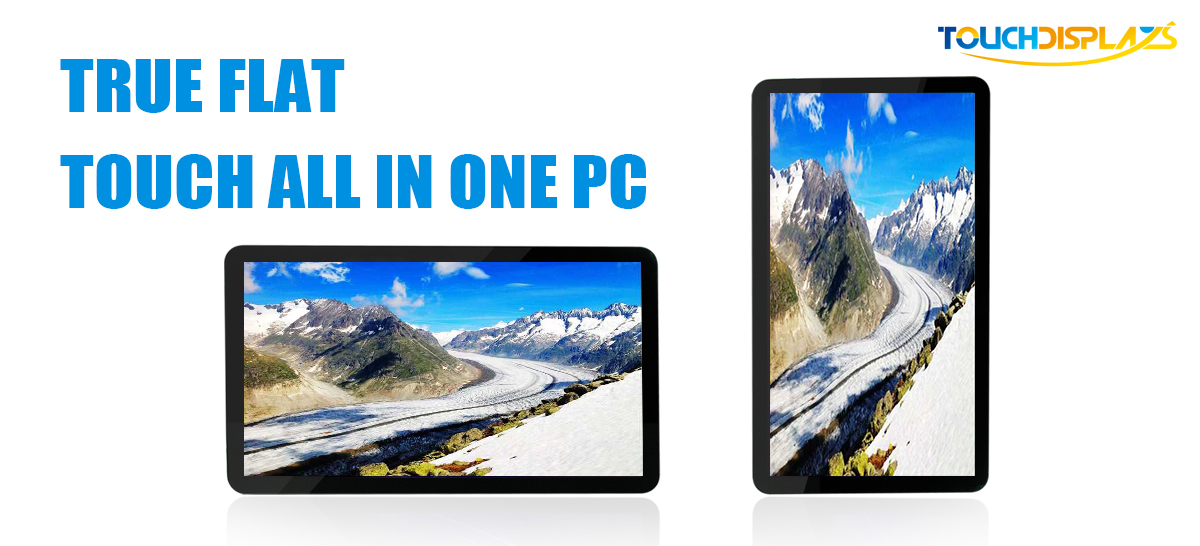

    The 21.5 touch monitor is a specialized product solution that mainly purposes to solve the customer's demand for customized products. This product provides unique customized services to customers from every angle including but not limited to appearance, performance, as well as function.

    FCC 21.5'' Touch Screen Monitor 250cd/M2 For Cash Register

    SPILL PROOF & DUST PROOF


    Default IP65 for the front panel, protecting screens and inside key components against water spilling and dust. Thus it's competent for retail business.


    Powered by Intel®’s latest high-performance processors, the terminal delivers powerful performance and reliable operation enough to run today’s demanding POS applications. With high efficiency, this machine can serve customers faster at an increased speed.

    FCC 21.5'' Touch Screen Monitor 250cd/M2 For Cash Register
    FCC 21.5'' Touch Screen Monitor 250cd/M2 For Cash Register

    FCC 21.5'' Touch Screen Monitor 250cd/M2 For Cash Register

    INTERFACE

    2151E offers multiple input interfaces like HDMI/VGA, USB, Rj45, Mic, etc., connecting diversified multimedia devices to meet customers' customized setting requirements, making information transmission more diversified and exciting.

    FCC 21.5'' Touch Screen Monitor 250cd/M2 For Cash Register

    PERIPHERALS

    MSR, Camera, RFID, Barcode Scanner, etc. Peripherals Supported.


    APPLICATION


    FCC 21.5'' Touch Screen Monitor 250cd/M2 For Cash Register


    SPECIFICATION

    Model2151E-IOT-F
    Case/Bezel ColorBlackwhite
    Display Size21.5″
    Touch panelProjected Capacitive Touch Screen
    Touch points10
    Touch response time8ms
    TouchAIO Dimensions524 x 46 x 315.5 mm
    LCD TypeTFT LCD(LED backlight)
    Useful Screen Area477.8 mm x 269.3 mm
    Aspect ratio16:9
    Optimal (native) Resolution1920*1080
    LCD panel Pixel pitch0.1875 x 0.1875 mm
    LCD panel Colors16.7 million
    LCD panel Brightness250 cd/m2
    LCD panel Response Time16 ms

    Viewing Angle
    (typical, from center)

    Horizontal±89° or 178° total (left/right)
    Vertical±89° or 178° total (up/down)
    Contrast Ratio3000:1
    output Video signal connectorMini D-Sub 15-Pin VGA type and HDMI type
    Interfaceusb 2.0*4(usb 3.0*2 optional)PCI-E(4G SIM card, wifi and Bluetooth optional)
    Earphone*1Mic*1Com*3RJ45*1
    Power Supply TypeMonitor input interface: +12VDC ±5%,6.0 A; DC Jack (2.5)
    AC to DC power brick input: 100-240 VAC, 50/60 Hz
    Power Consumption: 50W

    ECM
    (Embed Computer Modul)

    ECM3: Intel processor J1900 (Quad-core 2.0GHz/2.4GHz,Fanless)
    ECM4: Intel processor i3-4010U (Dual Core 1.7GHz,Fanless)
    ECM5: Intel processor i5-4200U (Dual Core 1.6GHz/2.6GHz Turbo, Fanless)
    ECM6: Intel processor i7-4500U (Dual Core 1.8GHz/3GHz Turbo, Fanless)
    SATA3: HDD 500G(up to 1TB optional) or SDD 32G(up to 128G optional)
    Memory: DDR3 4G(extend up to 16G Optional)
    CPU Upgrade:J3160 & I3-I7 series 5th 6th 7th optional
    Operation System:Win7Pos Ready7Win8XPWinCEVistaLinux
    ECM9: Cortex-A53 8Core 1.5GHz;GPU: PowerVR G6110
    Rom:1G(up to 2G4G optional);Flash:8G(up to 32G optional)
    Operation System: 5.1 or 6.0

    TemperatureOperating: 0°C to 40°C ;Storage -20°C to 60°C
    Humidity (non-condensing)Operating: 20%-80%; Storage: 10%-90%
    Shipping Carton Dimensions620 x 206 x 456 mm (2 PCS)
    Weight (approx.)Product Actual: 5.1 kg(1 Piece) ;Shipping: 13.2 kg( 2 PCS)
    Warranty Monitor3 years(Except for LCD panel 1 year)
    Backlight lamp life: typical 50,000 hours to half brightness
    Agency ApprovalsCE/FCC/RoHS (UL or GS for Customized)
    Mounting Options75 mm and 100 mm VESA mount
