Vandalproof 21.5" 1000cd/M2 Industrial Open Frame Monitor

Ask Lasest Price
Brand Name :	TouchDisplays
Model Number :	2151E-IOT
Certification :	CE/FCC/RoHS
Payment Terms :	T/T, Western Union, L/C
Supply Ability :	2000 units per month

Add to Cart

Product Details
Company Profile

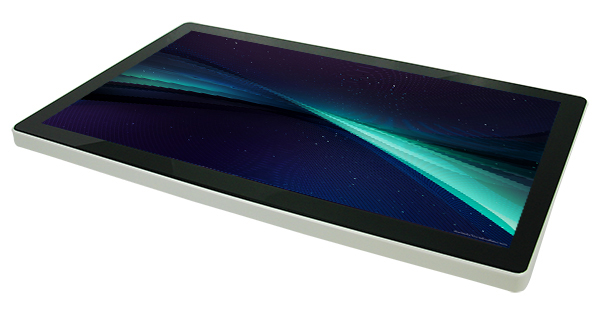

Vandalproof 21.5" 1000cd/M2 Industrial Open Frame Monitor

HIGH-END ULTRA-THIN VANDALPROOF 21.5" MULTI SYSTEM TOUCH MONITOR

Open frame LCD touch screen display, with slender fuselage and powerful projection capacitance multitouch touch screen. The open frame touch screen brings you real fast and accurate touch reactions and reliable and durable quality. 21.5 inch touch control, zero border screen, simple design, increase unique fashion atmosphere, 178° x 178° real Angle, make the visual image more prominent, realize the most effective visual information transmission. We are working to meet all the customization requirements, make the touchscreen easy to meet any application, casino, kioskin, education, self-service, industrial automation, entertainment and advertising.

Vandalproof 21.5" 1000cd/M2 Industrial Open Frame Monitor

LEADING TOUCH

TouchDisplays use the proven industry-leading touch technology. We offer projected capacitive (PACP) 10 points multi-touch, 5-wire resistive single touch and Infrared (IR) 10 points multi-touch, to meet with different applications.

10 points touch function not only replaces the instruction to image and programme from mouse proceeding intuitive operations like zooming out, sliding and rotating by using finger tips, But also having the characters of high stability and sensitivity, which enable applications run smoothly and stably, greatly improved the work efficiency.

FEATURE

• 21.5 inch wide touchscreen with PCAP and multi-touch technology

• High quality panel with 178° x 178°true viewing angle

• Multiple interface for peripherals

• Bezel-free screen with LED backlight and high resolution 1920*1080

• 3000:1 contrast ratio, and 250-nit brightness (LCD panel)

• Projected Capacitive Multi-touch Technology

• Optional front mount and rack mount bezels

• Fully RoHS compliant

• Mounting options including rear-mount and VESA mount

• LED Backlight and High Resolution 1920 x1080

• Multilingual on-screen display (OSD)

• Three year standard warranty

•10 points multi-touch

Compatible VESA mount 75*75/ 100*100 for both wall mounting and kiosk built-in.

VAG, HDMI and DVI interfaces to meet your requirements and best performance.

Vandalproof 21.5" 1000cd/M2 Industrial Open Frame Monitor

RELIABILITY AND WARRANTY

For all time, TouchDisplays try our best to supply touch screens with the best quality, and 3-year standard warranty is always our base line. We focus on providing reassuring devices for any customer, very single screen will be tested before delivery.

INSTALLATION

21.5 inch touch monitor deliveries an array of installment solutions to customers including wall-mount, countertop, arm and pole mount visa VESA or desktop stand.

PERIPHERALS- TOUCHDISPLAYS COMPUTER BACKUPS

For your touch screen displays, TouchDisplays offers rugged industrial single board computer backups, with customizable configurations and dimension. Which is a Windows/Android based platform with high expansion capability.

APPLICATION

Vandalproof 21.5" 1000cd/M2 Industrial Open Frame Monitor

DRAWINGS

Vandalproof 21.5" 1000cd/M2 Industrial Open Frame Monitor

SPECIFICATION

Model		2151E-OT-F
Case/Bezel Color		Blackwhite
Display Size		21.5"
Touch panel		Projected Capacitive Touch Screen
Touch points		10
Touch response time		8ms
Touchmonitors Dimensions		524 x 45.8 x 315.5 mm
LCD Type		TFT LCD(LED backlight)
Useful Screen Area		477.8 mm x 269.3 mm
Aspect ratio		16:9
Optimal (native) Resolution		1920*1080
LCD panel Pixel pitch		0.1875 x 0.1875 mm
LCD panel Colors		16.7 million
LCD panel Brightness		250 cd/m2(customized upto 1000 cd/m2 optional)
LCD panel Response Time		25 ms
Viewing Angle (typical, from center)	Horizontal	±89° or 178° total
	Vertical	±89° or 178° total
Contrast Ratio		3000:1
Input Video signal connector		Mini D-Sub 15-Pin VGA type and HDMI type or DVI type optional
Input Touch signal connector		USB or COM (optional)
Power Supply Type		Monitor input interface: +12VDC ±5%,4.0 A; DC Jack (2.5￠)
		AC to DC power brick input: 100-240 VAC, 50/60 Hz
		Power Consumption: 30W
On-screen display(OSD)		Controls(back): PowerMenuUpDownAuto; Settings: Contrast, Brightness, H/V position; RGB(color temp),Clock, Phase, Recall; Languages: English, German, French ,Spanish, Japanese, Italy, Chinese;
Temperature		Operating: 0°C to 40°C ;Storage -20°C to 60°C
Humidity (non-condensing)		Operating: 20%-80%; Storage: 10%-90%
Shipping Carton Dimensions		616 x 206 x 456 mm (2 PCS)
Weight (approx.)		Actual: 5.8 kg ;Shipping: 14.2 kg(2 PCS)
Warranty Monitor		3 years(Except for LCD panel 1 year)
		Backlight lamp life: typical 50,000 hours to half brightness
Agency Approvals		CE FCC RoHS (UL or GS for Customized)
Mounting Options		75 mm and 100 mm VESA mount
