Intel I3 Windows Network School Electronic Whiteboard For Teaching

    Buy cheap Intel I3 Windows Network School Electronic Whiteboard For Teaching from wholesalers

    Buy cheap Intel I3 Windows Network School Electronic Whiteboard For Teaching from wholesalers
    • Buy cheap Intel I3 Windows Network School Electronic Whiteboard For Teaching from wholesalers

    Intel I3 Windows Network School Electronic Whiteboard For Teaching

    Ask Lasest Price
    Brand Name : TouchDisplays
    Model Number : 6501E-IDT
    Certification : CE/FCC RoHS (UL & GS customized)
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 2000 units per month
    • Product Details
    • Company Profile

    Intel I3 Windows Network School Electronic Whiteboard For Teaching

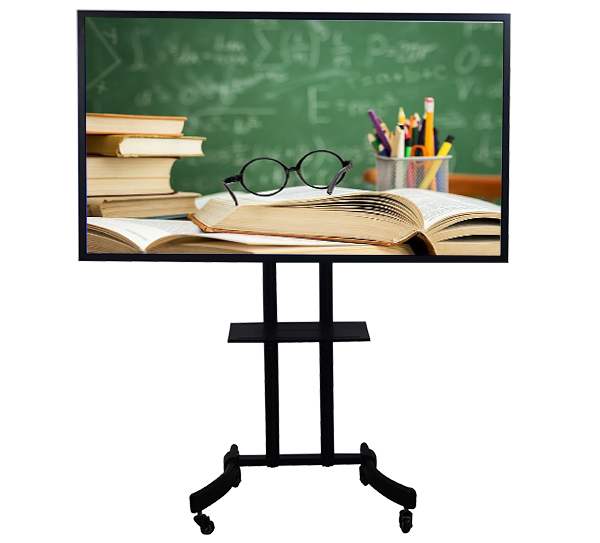

    65 Inch Windows Network Electronic Whiteboard Teaching Touch Screen Kiosk


    High definition interactive whiteboard

    With extremely powerful fanless RK3288/RK3399 and Intel i3/i5/i7 latest processors, our whiteboard is compatible with Android or Windows.

    And multiple interfaces support all peripherals extension

    Experience consistent colours from 178 Degree viewing angles


    See the difference in Digital signage technology.
    Accurate and stunning colour performances!

    Metal Case


    Durable, high anti-interferenceability, heat resistant


    Intel I3 Windows Network School Electronic Whiteboard For Teaching

    ALL IN ONE OPTIONS


    1. Windows/Linux

    Standard configuration for 21.5 inch touch all in one with windows system incorporates 4Gb DDR3 flash memory, expandable to 32Gb, 60Gb SSD memory, expandable to 480Gb.

    CPU options:

    Option1: Intel processor J1900 (Quad-core 2.0GHz/2.4GHz,Fanless)

    Option2: Intel processor i3-4010U (Dual Core 1.7GHz,Fanless)

    Option3: Intel processor i5-4200U (Dual Core 1.6GHz/2.6GHz Turbo, Fanless)

    Option4: Intel processor i7-4500U (Dual Core 1.8GHz/3GHz Turbo, Fanless)

    Gen. From 4th to 7th for option2~4.

    2. Android system:

    Standard configuration for 21.5 inch touch all in one with Android system incorporates 2Gb flash memory, expandable to 4Gb, 8G memory, expandable to 32Gb.

    CPU options:

    Option2:RK3399 Cortex-A72+Cortex-A53 6-Core 2GHz;GPU:Mail-T860MP4.


    APPLICATIONS


    Interactive whiteboard is widely used in conference and classrooms, our white boards are compatible with relevant software and web cam,

    Bluetooth and WiFi are also available to meet the best performance. Waterproof front panel with mark pen writable tempered glass makes friendly to children.

    Intel I3 Windows Network School Electronic Whiteboard For Teaching


    SPECIFICATION


    Model6501E-IOT
    Display Size65″
    Touch panelIR touch screen
    Touch response time16ms
    LCD TypeTFT LCD(LED backlight)
    Useful Screen Area1428.48 mm x 803.52 mm
    Aspect ratio16 : 9
    Optimal (native) Resolution1920 x 1080 (4K resolution optional)
    LCD panel Pixel pitch0.248 x 0.744 mm
    LCD panel Colors1.07G colors (8-bit+FRC)
    LCD panel Brightness350 cd/m2(customized upto 1000-2000 cd/m2 optional)
    LCD panel Response Time6.5 ms
    LCD panel Contrast Ratio5000:1
    Viewing AngleHorizontal±89° or 178° total
    (typical, from center)Vertical±89° or 178° total
    Monitor modulinput interfaceVGA(for computor display input)DVIHDMI(for another display input)
    Earphone out*1Audio in*1
    Computer modulInput interfaceUSB 2.0*4(USB 3.0*1 optional)PCI-E(4G SIM card, WIFI and Bluetooth optional)
    output interfaceEarphone*1Mic*1Com*3RJ45*1
    VGA(for computor display output) and HDMI(for second display output)
    Extend interfaceUSB2.0*4Com*21*PLTSATA3.0
    ECM (Embed Computer Modul)

    ECM4: Intel® processor i3 5010U (Dual Core 2.1GH, Fanless);

    ECM5: Intel® processor i5 5200U (Dual Core 2.2GHz/2.7GHz Turbo, Fanless);

    ECM6: Intel® processor i7 5500U (Dual Core 2.4GHz/3.0GHz Turbo, Fanless);

    HDD:500G(1TB optional) or SDD:32G(up to 128G optional);

    Memory: DDR3 4G(up to 16G);

    CPU Upgrade: I3-I7 series 6th 7th optional

    Operation System:Win7Pos ready7Win8XPWinCEVistaLinux Ubuntu

    ECM9: Cortex-A53 8 Core 1.5GHz;GPU: PowerVR G6110;

    Rom:2G(up to 4G optional);Flash:8G(up to 32G optional);

    Operation System: 5.1 or 6.0

    ECM10: Dual Cortex-A72 + Quad Cortex-A53 6 Core 2.0GHz;GPU: Mali-T860 ;

    Rom: 2G(up to 4G optional);Flash:8G(up to 32G optional);

    Operation System: 7.0

    Power Supply TypeAC to DC power brick input: 90-240 VAC, 50/60 Hz
    Power Consumption: 90W
    TemperatureOperating: 0°C to 40°C ;Storage -20°C to 60°C
    Humidity (non condensing)Operating: 20%-80%; Storage: 10%-90%
    Shipping Carton Dimensions1600 x 240 x 1000 mm (2 PCS)
    Weight (approx.)Product Actual: 41 kg (1 piece) ; Shipping: 99 kg ( 2 PCS )
    Warranty Monitor4 years(Except for LCD panel 1 year)
    Backlight lamp life: typical 30,000 hours to half brightness
    Agency ApprovalsCE/FCC RoHS(UL GS optional)
    Mounting Options200mmx100mm VESA mount
