All In One RK3288 RK3399 Interactive Touch Screen Whiteboard

    Buy cheap All In One RK3288 RK3399 Interactive Touch Screen Whiteboard from wholesalers

    Buy cheap All In One RK3288 RK3399 Interactive Touch Screen Whiteboard from wholesalers
    • Buy cheap All In One RK3288 RK3399 Interactive Touch Screen Whiteboard from wholesalers

    All In One RK3288 RK3399 Interactive Touch Screen Whiteboard

    Ask Lasest Price
    Brand Name : TouchDisplays
    Model Number : 6501E-IDT
    Certification : CE/FCC RoHS (UL & GS customized)
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 2000 units per month
    • Product Details
    • Company Profile

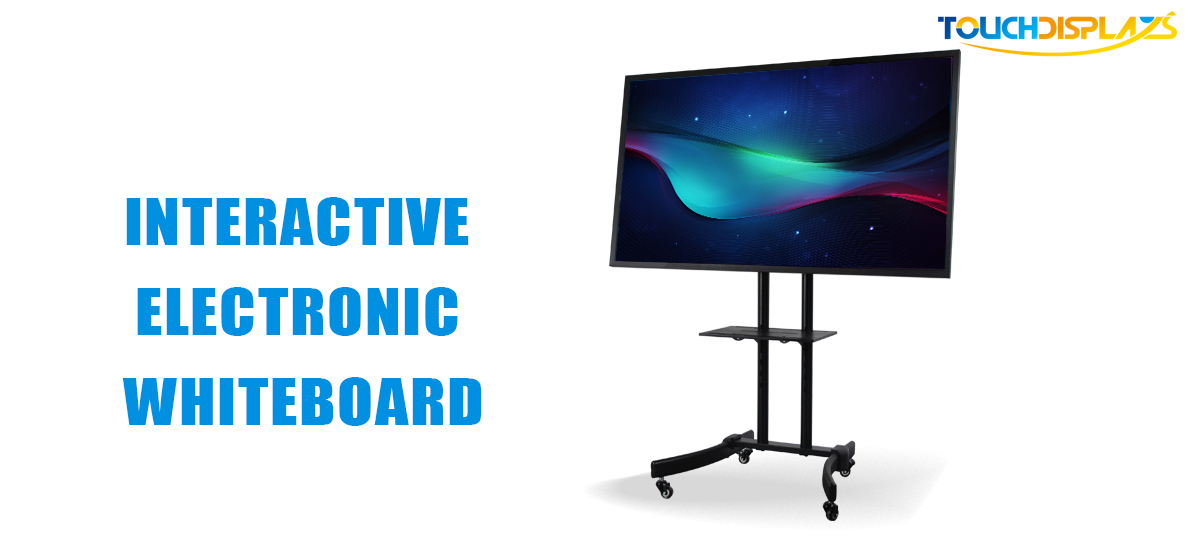

    All In One RK3288 RK3399 Interactive Touch Screen Whiteboard

    65 Inch Touch screen interatctive whiteboard cheap touch screen all in one


    High definition interactive whiteboard

    With extremely powerful fanless RK3288/RK3399 and Intel i3/i5/i7 latest processors, our whiteboard is compatible with Android or Windows.

    And multiple interfaces support all peripherals extension

    VERSATILE TOUCH TECHNOLOGIES


    TouchDisplays focuses on delivering the right touch, whiteboard from 65 inch up to 98 inch, we offers both Infrared(IR) multi touch and Projected Capacitive(PCAP) multi touch, to deliver the solutions most economical and efficient.

    UHD RESOLUTION DISPLAY


    Having excellent colour reproduction and life-like image are essential for large-screen displays, 4K resolution is how we make it. High brightness up to 1500 nits and anti-glare technology makes it sunlight readable, helping you use more freely both indoor or outdoor.

    All In One RK3288 RK3399 Interactive Touch Screen Whiteboard

    ALL IN ONE OPTIONS


    With extremely powerful fanless RK3288/RK3399 and Intel i3/i5/i7 latest processors, our whiteboard could be compatible with Android or Windows. And multiple interfaces support all peripherals extensions.


    APPLICATIONS


    Interactive whiteboard is widely used in conference and classrooms, our white boards are compatible with relevant software and web cam,

    Bluetooth and WiFi are also available to meet the best performance. Waterproof front panel with mark pen writable tempered glass makes friendly to children.

    All In One RK3288 RK3399 Interactive Touch Screen Whiteboard


    SPECIFICATION


    Model6501E-IOT
    Case/Bezel ColorBlack/Silvery/white(Customized)
    Display Size65″
    Touch panelIR touch screen
    Touch response time16ms
    Touchcomputors Dimensions1483 mm*80.4 mm*858 mm
    Aspect ratio16 : 9
    Optimal (native) Resolution1920 x 1080 (4K resolution optional)
    LCD panel Pixel pitch0.248 x 0.744 mm
    LCD panel Colors1.07G colors (8-bit+FRC)
    LCD panel Brightness350 cd/m2(customized upto 1000-2000 cd/m2 optional)
    LCD panel Response Time6.5 ms
    LCD panel Contrast Ratio5000:1
    Viewing AngleHorizontal±89° or 178° total
    (typical, from center)Vertical±89° or 178° total
    Monitor modulinput interfaceVGA(for computor display input)DVIHDMI(for another display input)
    Earphone out*1Audio in*1
    Computer modulInput interfaceUSB 2.0*4(USB 3.0*1 optional)PCI-E(4G SIM card, WIFI and Bluetooth optional)
    output interfaceEarphone*1Mic*1Com*3RJ45*1
    VGA(for computor display output) and HDMI(for second display output)
    Extend interfaceUSB2.0*4Com*21*PLTSATA3.0
    ECM (Embed Computer Modul)

    ECM4: Intel® processor i3 5010U (Dual Core 2.1GH, Fanless);

    ECM5: Intel® processor i5 5200U (Dual Core 2.2GHz/2.7GHz Turbo, Fanless);

    ECM6: Intel® processor i7 5500U (Dual Core 2.4GHz/3.0GHz Turbo, Fanless);

    HDD:500G(1TB optional) or SDD:32G(up to 128G optional);

    Memory: DDR3 4G(up to 16G);

    CPU Upgrade: I3-I7 series 6th 7th optional

    Operation System:Win7Pos ready7Win8XPWinCEVistaLinux Ubuntu

    ECM9: Cortex-A53 8 Core 1.5GHz;GPU: PowerVR G6110;

    Rom:2G(up to 4G optional);Flash:8G(up to 32G optional);

    Operation System: 5.1 or 6.0

    ECM10: Dual Cortex-A72 + Quad Cortex-A53 6 Core 2.0GHz;GPU: Mali-T860 ;

    Rom: 2G(up to 4G optional);Flash:8G(up to 32G optional);

    Operation System: 7.0

    Power Supply TypeAC to DC power brick input: 90-240 VAC, 50/60 Hz
    Power Consumption: 90W
    TemperatureOperating: 0°C to 40°C ;Storage -20°C to 60°C
    Humidity (non condensing)Operating: 20%-80%; Storage: 10%-90%
    Shipping Carton Dimensions1600 x 240 x 1000 mm (2 PCS)
    Weight (approx.)Product Actual: 41 kg (1 piece) ; Shipping: 99 kg ( 2 PCS )
    Warranty Monitor4 years(Except for LCD panel 1 year)
    Backlight lamp life: typical 30,000 hours to half brightness
    Agency ApprovalsCE/FCC RoHS(UL GS optional)
    Mounting Options200mmx100mm VESA mount
