    Desktop 15.0" PCAP Touch Screen Cash Register Machine

    Ask Lasest Price
    Brand Name : TouchDisplays
    Model Number : 1515E-IDT
    Certification : CE/FCC RoHS (UL & GS customized)
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 2000 units per month
    • Product Details
    • Company Profile

    Desktop 15.0" PCAP Touch Screen Cash Register Machine

    15 inchpos all in one touch screen pos system desktop widescreen


    1515E is a Multi function Pos all in one, with PCAP, Fanless design, 15" Highlight led backlight screen, with Full metal housing design for a good dissipation, Vesa mounting provides compatibility with standard wall mounts and stand for simple installation in the tightest spaces.

    · A Grade Mitsubishi LCD PANEL we use, high brightness;


    · PCAP design, 10 point Capacitive Touch;


    · Aluminum design, which is unique, avoid the high competition;


    · Other function can customize: wifi antenna/module internal,bluetooth, loud Speaker, 1D/2D


    ·Scanner, 2 lines VFD customer display option;



    Extremely powerful and low consumption fanless processors;


    Flexible CPU options for different Android versions;


    Wide range from Intel j1800 to i7 latest 7th generation for windows.


    1515E POS runs critical applications fast, helps to serve your customers even faster.


    Fanless processor thus low consumption and a noiseless surrounding.

    Desktop 15.0" PCAP Touch Screen Cash Register Machine
    Desktop 15.0" PCAP Touch Screen Cash Register Machine

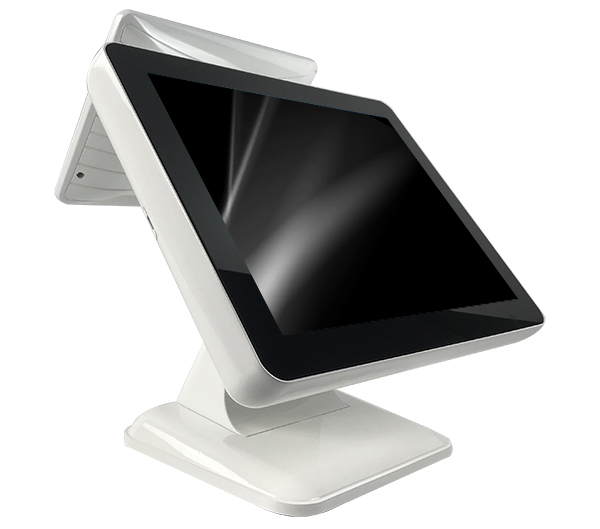

    ROTATABLE DISPLAY SCREEN


    Our POS is user friendly with a rotatable display head, your staff can find and adjust the screen to the best viewing angle, and best position for operating.

    15 inch true-flat and zero-bezel projected capacitive multi touch screen;

    With its projected capacitive screen, 1515E delivers really quick touch response and support multi 10 touch points.

    Classic 15 inch screens with 1024*768 resolution, provides less time for staff training.

    Bezel-free and true-flat patented design makes it simple, elegant and reliable.

    Desktop 15.0" PCAP Touch Screen Cash Register Machine

    INTERFACE


    Offered multiple I/O interfaces , including USB ports, Mic, Rj45 ports and more.

    The powered USB is available for more peripheral connections.


    Optional:

    The special quick release design ,allows self-maintained customers to easily replace the display module, such as Solid-State , Hard Disk , for quickly tool-less servicing.

    Desktop 15.0" PCAP Touch Screen Cash Register Machine
    Desktop 15.0" PCAP Touch Screen Cash Register Machine

    APPLICATION


    With unique compatible design, TouchDisplays POS systems are built and crafted to adapt to any critical conditions.

    Desktop 15.0" PCAP Touch Screen Cash Register Machine


    SPECIFICATION


    Model1515E-IDT
    Case/Bezel ColorBlack/Silvery/white(Customized)
    Display Size15.0"
    Touch panel (True-flat Style)Projected Capacitive touch screen (Resistive touch screen optional)
    Touch response time8ms (PCT typical) & 5ms(Resistive)
    Touchcomputors Dimensions372x 212 x 318 mm
    LCD TypeTFT LCD(LED backlight)
    Useful Screen Area304 mm x 228 mm
    Aspect ratio4:3
    Optimal (native) Resolution1024 x 768
    LCD panel Pixel pitch0.297 x 0.297 mm
    LCD panel Colors16.7 million
    LCD panel Brightness250 cd/m2
    LCD panel Contrast Ratio800:1
    LCD panel Response Time30 ms
    Viewing AngleHorizontal±80° or 160° total (left/right)
    (typical, from center)Vertical±80° or 160° total (up/down)
    output Video signal connectorMini D-Sub 15-Pin VGA type and HDMI type
    Input interface2*USB 2.0 & 2*USB 3.0 & 2*COM(3*COM optional)
    1*Earphone1*Mic1*RJ45(2*RJ45 optional)
    Extend interface2*USB2.02*Sata3.02*PCI-E(4G SIM card, 2.4G&5G wifi & Bluetooth module optional)
    Power Supply TypeMonitor input: +12VDC ±5%,5.0 A; DC Jack (2.5¢)
    AC to DC power brick input: 100-240 VAC, 50/60 Hz
    Power Consumption: less than 60W
    ECM (Embed Computer Modul)ECM2: Intel processor J1800 (Dual Core 2.41GHz,Fanless)
    ECM3: Intel processor J1900 (Quad-core 2.0GHz/2.4GHz,Fanless)
    ECM4: Intel processor i3-4010U (Dual Core 1.7GHz,Fanless)
    ECM5: Intel processor i5-4200U (Dual Core 1.6GHz/2.6GHz Turbo, Fanless)
    ECM6: Intel processor i7-4500U (Dual Core 1.8GHz/3GHz Turbo, Fanless)
    CPU Upgrade:3855U & I3-I7 series 5th 6th 7th optional
    SATA3:HDD 500G(up to 1TB optional);SDD 32G(up to 128G optional)
    Memory: DDR3 4G(extend up to 16G Optional)
    ECM8: RK3288 Cortex-A17 quad-core 1.8G, GPU:Mali-T764;Operation System: 5.1
    ECM9: RK3368 Cortex-A53 8Core 1.5GHz;GPU:PowerVR G6110;Operation System: 6.0
    ECM10:RK3399 Cortex-A72+Cortex-A53 6-Core 2GHz;GPU:Mail-T860MP4;Operation System: 7.1
    Rom:2G(up to 4G optional);Flash:8G(up to 32G optional)
    TemperatureOperating: 0°C to 40°C ;Storage -20°C to 60°C
    Humidity (non condensing)Operating: 20%-80%; Storage: 10%-90%
    Shipping Carton Dimensions450 x 280 x 470 mm(with stand);470 x 210 x 420 mm(without stand)
    Weight (approx.)Actual: 6.8 kg ;Shipping: 8.2 kg
    Warranty Monitor3 years(Except for LCD panel 1 year)
    Backlight lamp life: typical 50,000 hours to half brightness
    Agency ApprovalsCE/FCC RoHS (UL & GS customized)
    Mounting Options75 mm and 100mm VESA mount(Remove Stood)
