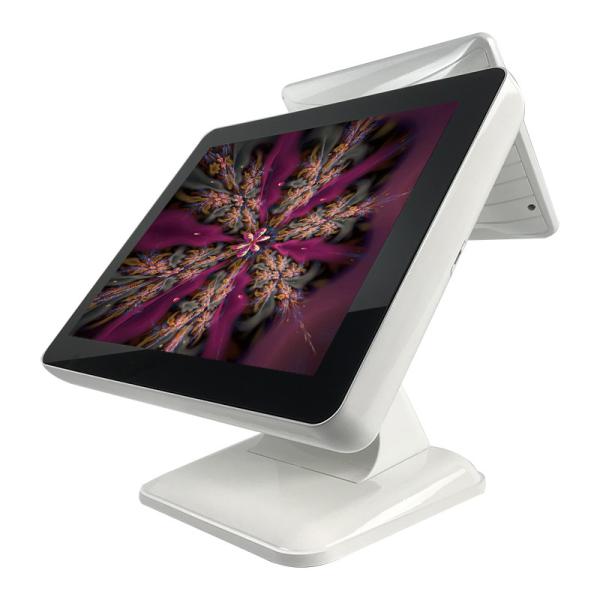

Aluminium casing PCAP Touch Screen POS Terminal

    Buy cheap Aluminium casing PCAP Touch Screen POS Terminal from wholesalers

    Buy cheap Aluminium casing PCAP Touch Screen POS Terminal from wholesalers
    • Buy cheap Aluminium casing PCAP Touch Screen POS Terminal from wholesalers

    Aluminium casing PCAP Touch Screen POS Terminal

    Ask Lasest Price
    Brand Name : TouchDisplays
    Model Number : 1515E-IDT-0315
    Certification : CE/FCC RoHS (UL & GS customized)
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 2000 units per month
    • Product Details
    • Company Profile

    Aluminium casing PCAP Touch Screen POS Terminal

    Aluminium casing PCAP touch all in one pos terminal cash register

    1515E Pos all in one, a 15 inch touch all in one terminal,Which can be applied into Android and Windows systems,is made by the top touch technology. It also has USB port with projected capacitive multi-touch technology. Creative touch technology brings you an unbelievable sensitive operation experience.


    · Operation system:Windows/Linux/Android


    · 4Gb DDR3 flash memory, expandable to 32Gb, 60Gb SSD memory, expandable to 480Gb.


    · CPU options from J1900 to I7.


    · Support 2 line VFD and 10’’, 11.6”, 15.6” LCD customer display.


    ·More accessories available like MSR, Camera, RFID, Bar code Scanner, etc.



    perfectly powerful and high quality fanless processors;


    Flexible CPU options for different Android versions;

    Different kinds of range from Intel j1800 to i7 latest 7th generation for windows;


    1515E POS runs applications fast, helps to serve your customers with a good service experience;


    Fanless processor cost low consumption and a noiseless configuration.


    Aluminium casing PCAP Touch Screen POS Terminal
    Aluminium casing PCAP Touch Screen POS Terminal

    ROTATABLE DISPLAY SCREEN


    Our POS has a rotatable display screen, your can find and adjust the screen to any viewing angle you like, and best position for operation.

    15 inch true-flat and zero-bezel PCAP multi touch screen;

    1515E product delivers a fast touch reaction and support multi 10 touch points.

    Classic 15 inch screen is designed with 1024*768 resolution, provides a very clear and true feeling to customers.

    Bezel-free and true-flat designs make 1515E a very delicate stylish gift for different kinds of customers.

    Aluminium casing PCAP Touch Screen POS Terminal

    INTERFACE


    Offered multiple I/O interfaces , including USB ports, Mic, Rj45 ports and so on.

    Optional:

    The special quick design ,allows customers to flexibly replace the display parts, such as Solid-State , Hard Disk , for quick tool-less services.

    Aluminium casing PCAP Touch Screen POS Terminal
    Aluminium casing PCAP Touch Screen POS Terminal

    APPLICATION


    With unique compatible design, TouchDisplays POS systems are built and crafted to adapt to any critical conditions.

    Aluminium casing PCAP Touch Screen POS Terminal


    SPECIFICATION


    Model1515E-IDT
    Case/Bezel ColorBlack/Silvery/white(Customized)
    Display Size15.0"
    Touch panel (True-flat Style)Projected Capacitive touch screen (Resistive touch screen optional)
    Touch response time8ms (PCT typical) & 5ms(Resistive)
    Touchcomputors Dimensions372x 212 x 318 mm
    LCD TypeTFT LCD(LED backlight)
    Useful Screen Area304 mm x 228 mm
    Aspect ratio4:3
    Optimal (native) Resolution1024 x 768
    LCD panel Pixel pitch0.297 x 0.297 mm
    LCD panel Colors16.7 million
    LCD panel Brightness250 cd/m2
    LCD panel Contrast Ratio800:1
    LCD panel Response Time30 ms
    Viewing AngleHorizontal±80° or 160° total (left/right)
    (typical, from center)Vertical±80° or 160° total (up/down)
    output Video signal connectorMini D-Sub 15-Pin VGA type and HDMI type
    Input interface2*USB 2.0 & 2*USB 3.0 & 2*COM(3*COM optional)
    1*Earphone1*Mic1*RJ45(2*RJ45 optional)
    Extend interface2*USB2.02*Sata3.02*PCI-E(4G SIM card, 2.4G&5G wifi & Bluetooth module optional)
    Power Supply TypeMonitor input: +12VDC ±5%,5.0 A; DC Jack (2.5¢)
    AC to DC power brick input: 100-240 VAC, 50/60 Hz
    Power Consumption: less than 60W
    ECM (Embed Computer Modul)ECM2: Intel processor J1800 (Dual Core 2.41GHz,Fanless)
    ECM3: Intel processor J1900 (Quad-core 2.0GHz/2.4GHz,Fanless)
    ECM4: Intel processor i3-4010U (Dual Core 1.7GHz,Fanless)
    ECM5: Intel processor i5-4200U (Dual Core 1.6GHz/2.6GHz Turbo, Fanless)
    ECM6: Intel processor i7-4500U (Dual Core 1.8GHz/3GHz Turbo, Fanless)
    CPU Upgrade:3855U & I3-I7 series 5th 6th 7th optional
    SATA3:HDD 500G(up to 1TB optional);SDD 32G(up to 128G optional)
    Memory: DDR3 4G(extend up to 16G Optional)
    ECM8: RK3288 Cortex-A17 quad-core 1.8G, GPU:Mali-T764;Operation System: 5.1
    ECM9: RK3368 Cortex-A53 8Core 1.5GHz;GPU:PowerVR G6110;Operation System: 6.0
    ECM10:RK3399 Cortex-A72+Cortex-A53 6-Core 2GHz;GPU:Mail-T860MP4;Operation System: 7.1
    Rom:2G(up to 4G optional);Flash:8G(up to 32G optional)
    TemperatureOperating: 0°C to 40°C ;Storage -20°C to 60°C
    Humidity (non condensing)Operating: 20%-80%; Storage: 10%-90%
    Shipping Carton Dimensions450 x 280 x 470 mm(with stand);470 x 210 x 420 mm(without stand)
    Weight (approx.)Actual: 6.8 kg ;Shipping: 8.2 kg
    Warranty Monitor3 years(Except for LCD panel 1 year)
    Backlight lamp life: typical 50,000 hours to half brightness
    Agency ApprovalsCE/FCC RoHS (UL & GS customized)
    Mounting Options75 mm and 100mm VESA mount(Remove Stood)
