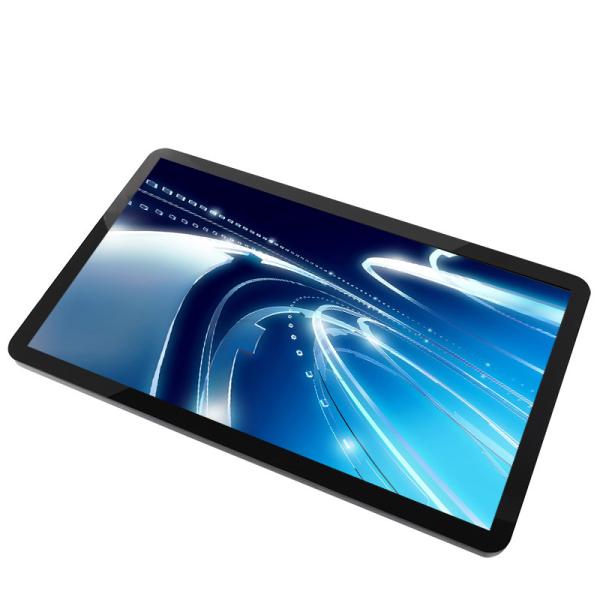

21.5 inch touch Interactive Digital Signage adopts the cutting-edge touch technology supporting both Android and windows systems, through USB port enabling to experience projected capacitive multi-touch technology. Innovative touch technology deliveries a intuitive operation experience, supporting finger, stylus and others touch method to proceed operation whether zooming our and in, opening window or application switching, all are operable by simply touching the screen, which not only improving the work efficiency but also delivering a resilient usage requirement.

TouchDisplays interactive signage featured with its multipurpose ability. We do customized kiosks built in or customized thickness to fit your kiosks. With a compatible VESA holes, it’s also able to be wall mounted or floor-stand with a bracket. Benefit from its optional high brightness and true viewing angle, our digital signage is sunlight readable.

Extremely powerful and low consumption fanless processors;

Flexible CPU options for different Android versions;

Wide range from Intel j1800 to i7 latest 7th generation for windows.

2151E Touch Interactive Digital Signage PC runs critical applications fast, helps you serve your customers even faster.

Fanless processor thus low consumption and a noiseless surrounding.

INTERFACE

Offered multiple interfaces: HDMI/VGA, USB, Rj45, Mic and others, installation of video input and output is quick and easy.

The powered USB is available for more peripheral connections.

PERIPHERALS

Multimedia function supported playing photoes, music, 1080P high resolution video through USB hot plug

21.5 inch can access internet through RJ45 ethernet network, enjoying a high effective and convenient information transferring.

21.5 inch touch Interactive Digital Signage integrates RS232 function connection delivering a convenient setting and operation, through which multiple monitors can be connected simultaneously achieving the most effective maintenance and management.

APPLICATION

Viewing Angle

(typical, from center)

ECM

(Embed Computer Modul)

ECM3: Intel processor J1900 (Quad-core 2.0GHz/2.4GHz,Fanless)

ECM4: Intel processor i3-4010U (Dual Core 1.7GHz,Fanless)

ECM5: Intel processor i5-4200U (Dual Core 1.6GHz/2.6GHz Turbo, Fanless)

ECM6: Intel processor i7-4500U (Dual Core 1.8GHz/3GHz Turbo, Fanless)

SATA3: HDD 500G(up to 1TB optional) or SDD 32G(up to 128G optional)

Memory: DDR3 4G(extend up to 16G Optional)

CPU Upgrade:J3160 & I3-I7 series 5^th 6^th 7^th optional

Operation System:Win7Pos Ready7Win8XPWinCEVistaLinux

ECM9: Cortex-A53 8Core 1.5GHz;GPU: PowerVR G6110

Rom:1G(up to 2G4G optional);Flash:8G(up to 32G optional)

Operation System: 5.1 or 6.0
