21.5 inch 250cd/M2 Android Interactive Digital Signage Display

    Buy cheap 21.5 inch 250cd/M2 Android Interactive Digital Signage Display from wholesalers

    Buy cheap 21.5 inch 250cd/M2 Android Interactive Digital Signage Display from wholesalers
    • Buy cheap 21.5 inch 250cd/M2 Android Interactive Digital Signage Display from wholesalers

    21.5 inch 250cd/M2 Android Interactive Digital Signage Display

    Ask Lasest Price
    Brand Name : TouchDisplays
    Model Number : 2151E-IOT
    Certification : CE/FCC/RoHS
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 2000 units per month
    • Product Details
    • Company Profile

    21.5 inch 250cd/M2 Android Interactive Digital Signage Display

    FACTORY CUSTOM 21.5 INCH INTERACTIVE ANDROID WINDOW DIGITAL SIGNAGE KIOSK LCD ADVERTISING DISPLAY


    TouchDisplays 21.5 inch open-shelf touch display can provide industrial solutions to OEM and system integrator customers with more reliable and cost-effective products. open-frame touch display has reliable quality, excellent image clarity and light transmittance, can provide stable, no drift touch operation, and achieve accurate touch response. The 90 Series offers a wide range of sizes, touch technology and brightness for a variety of harsh and complex environments such as self-service, games, industrial automation and health care.

    21.5 inch 250cd/M2 Android Interactive Digital Signage Display

    21.5 inch 250cd/M2 Android Interactive Digital Signage Display

    Bezel-free screen

    With Bezel-free screen design applies on 21.5’’ touch all in on, all the images under fingertips become so vivid and animate, releasing more for screen space expands more extensive view.

    The terminal is compact in size yet powerful in performance. Powered by Intel®’s latest high-performance processors, delivers powerful performance and reliable operation enough to run today’s demanding POS applications. It can serve customers faster at increased speed with efficiency while improving the customer checkout experience.


    21.5 inch 250cd/M2 Android Interactive Digital Signage Display
    21.5 inch 250cd/M2 Android Interactive Digital Signage Display

    21.5 inch 250cd/M2 Android Interactive Digital Signage Display

    INTERFACE

    21.5 inch touch all in oneThe extension module can be connected to a variety of peripheral devices, including money box, printer, bar code scanner, payment device end-with the interface can be fully covered.

    21.5 inch 250cd/M2 Android Interactive Digital Signage Display

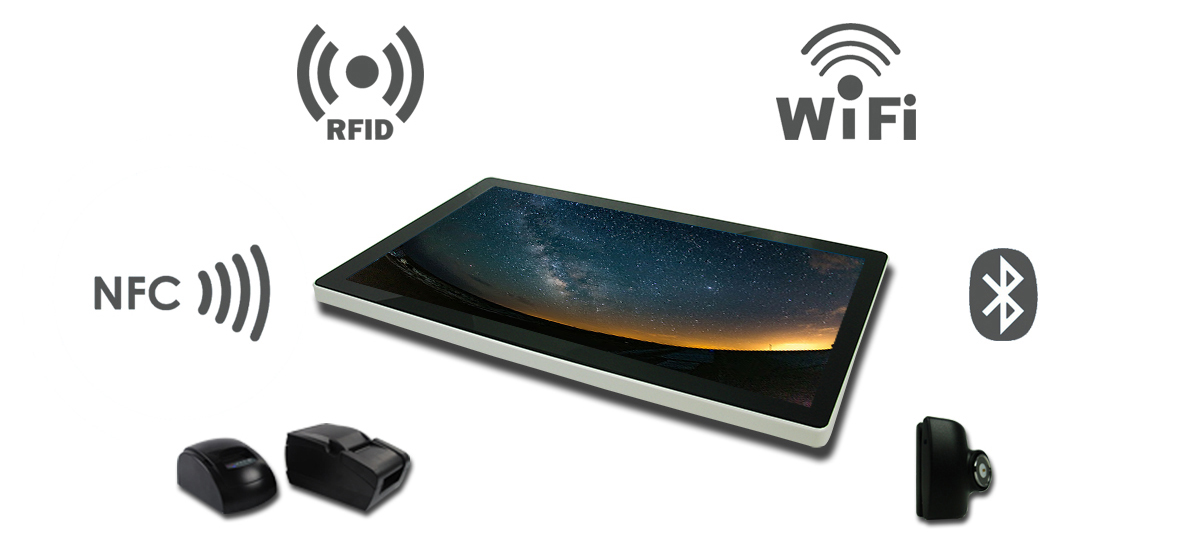

    PERIPHERALS


    Multimedia function supported playing photoes, music, 1080P high resolution video through USB hot plug


    21.5 inch can access internet through RJ45 ethernet network, enjoying a high effective and convenient information transferring.


    21.5 inch touch Interactive Digital Signage integrates RS232 function connection delivering a convenient setting and operation, through which multiple monitors can be connected simultaneously achieving the most effective maintenance and management.


    APPLICATION


    21.5 inch 250cd/M2 Android Interactive Digital Signage Display


    SPECIFICATION


    Model2151E-IOT-F
    Case/Bezel ColorBlackwhite
    Display Size21.5″
    Touch panelProjected Capacitive Touch Screen
    Touch points10
    Touch response time8ms
    TouchAIO Dimensions524 x 46 x 315.5 mm
    LCD TypeTFT LCD(LED backlight)
    Useful Screen Area477.8 mm x 269.3 mm
    Aspect ratio16:9
    Optimal (native) Resolution1920*1080
    LCD panel Pixel pitch0.1875 x 0.1875 mm
    LCD panel Colors16.7 million
    LCD panel Brightness250 cd/m2
    LCD panel Response Time16 ms

    Viewing Angle

    (typical, from center)

    Horizontal±89° or 178° total (left/right)
    Vertical±89° or 178° total (up/down)
    Contrast Ratio3000:1
    output Video signal connectorMini D-Sub 15-Pin VGA type and HDMI type
    Interfaceusb 2.0*4(usb 3.0*2 optional)PCI-E(4G SIM card, wifi and Bluetooth optional)
    Earphone*1Mic*1Com*3RJ45*1
    Power Supply TypeMonitor input interface: +12VDC ±5%,6.0 A; DC Jack (2.5)
    AC to DC power brick input: 100-240 VAC, 50/60 Hz
    Power Consumption: 50W

    ECM

    (Embed Computer Modul)

    ECM3: Intel processor J1900 (Quad-core 2.0GHz/2.4GHz,Fanless)

    ECM4: Intel processor i3-4010U (Dual Core 1.7GHz,Fanless)

    ECM5: Intel processor i5-4200U (Dual Core 1.6GHz/2.6GHz Turbo, Fanless)

    ECM6: Intel processor i7-4500U (Dual Core 1.8GHz/3GHz Turbo, Fanless)

    SATA3: HDD 500G(up to 1TB optional) or SDD 32G(up to 128G optional)

    Memory: DDR3 4G(extend up to 16G Optional)

    CPU Upgrade:J3160 & I3-I7 series 5th 6th 7th optional

    Operation System:Win7Pos Ready7Win8XPWinCEVistaLinux

    ECM9: Cortex-A53 8Core 1.5GHz;GPU: PowerVR G6110

    Rom:1G(up to 2G4G optional);Flash:8G(up to 32G optional)

    Operation System: 5.1 or 6.0

    TemperatureOperating: 0°C to 40°C ;Storage -20°C to 60°C
    Humidity (non-condensing)Operating: 20%-80%; Storage: 10%-90%
    Shipping Carton Dimensions620 x 206 x 456 mm (2 PCS)
    Weight (approx.)Product Actual: 5.1 kg(1 Piece) ;Shipping: 13.2 kg( 2 PCS)
    Warranty Monitor3 years(Except for LCD panel 1 year)
    Backlight lamp life: typical 50,000 hours to half brightness
    Agency ApprovalsCE/FCC/RoHS (UL or GS for Customized)
    Mounting Options75 mm and 100 mm VESA mount
