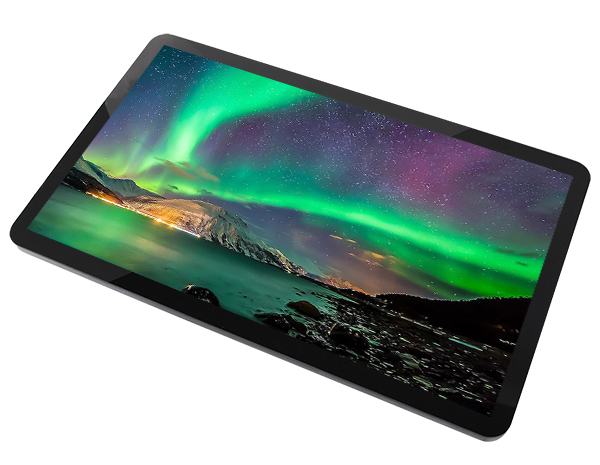

21.5 inch Interactive Digital Signage open frame delivers its mission to various fields, opening a gateway to a new trend for self-service meeting 99% customer’s requirements by providing various reliable and stable functional solutions, its unique streamlining bezel-free casing design matching with delicate high resolution LCD screen deliveries customers with a delightful visual feast , and also a variety of peripherals available supporting customers with different utility scenarios.

TouchDisplays interactive signage featured with its multipurpose ability. We do customized kiosks built in or customized thickness to fit your kiosks. With a compatible VESA holes, it’s also able to be wall mounted or floor-stand with a bracket. Benefit from its optional high brightness and true viewing angle, our digital signage is sunlight readable.

Operational system:

1.Windows/Linux

Standard configuration for 21.5 inch touch Interactive Digital Signage with windows system incorporates 4Gb DDR3 flash memory, expandable to 32Gb, 60Gb SSD memory, expandable to 480Gb.

CPU options:

Option1: Intel processor J1900 (Quad-core 2.0GHz/2.4GHz,Fanless)

Option2: Intel processor i3-4010U (Dual Core 1.7GHz,Fanless)

Option3: Intel processor i5-4200U (Dual Core 1.6GHz/2.6GHz Turbo, Fanless)

Option4: Intel processor i7-4500U (Dual Core 1.8GHz/3GHz Turbo, Fanless)

Gen. From 4^th to 7^th for option2~4.

2.Android system:

Standard configuration for 21.5 inch touch Interactive Digital Signage with Android system incorporates 2Gb flash memory, expandable to 4Gb, 8G memory, expandable to 32Gb.

CPU options:

Option2:RK3399 Cortex-A72+Cortex-A53 6-Core 2GHz;GPU:Mail-T860MP4.

INTERFACE

Offered multiple interfaces: HDMI/VGA, USB, Rj45, Mic and others, installation of video input and output is quick and easy.

The powered USB is available for more peripheral connections.

PERIPHERALS

Multimedia function supported playing photoes, music, 1080P high resolution video through USB hot plug

21.5 inch can access internet through RJ45 ethernet network, enjoying a high effective and convenient information transferring.

21.5 inch Interactive Digital Signage one integrates RS232 function connection delivering a convenient setting and operation, through which multiple monitors can be connected simultaneously achieving the most effective maintenance and management.

APPLICATION

Designed specially for retail, hospitality, healthcare, public services and other commercial markets.

Viewing Angle

(typical, from center)

ECM

(Embed Computer Modul)

ECM3: Intel processor J1900 (Quad-core 2.0GHz/2.4GHz,Fanless)

ECM4: Intel processor i3-4010U (Dual Core 1.7GHz,Fanless)

ECM5: Intel processor i5-4200U (Dual Core 1.6GHz/2.6GHz Turbo, Fanless)

ECM6: Intel processor i7-4500U (Dual Core 1.8GHz/3GHz Turbo, Fanless)

SATA3: HDD 500G(up to 1TB optional) or SDD 32G(up to 128G optional)

Memory: DDR3 4G(extend up to 16G Optional)

CPU Upgrade:J3160 & I3-I7 series 5^th 6^th 7^th optional

Operation System:Win7Pos Ready7Win8XPWinCEVistaLinux

ECM9: Cortex-A53 8Core 1.5GHz;GPU: PowerVR G6110

Rom:1G(up to 2G4G optional);Flash:8G(up to 32G optional)

Operation System: 5.1 or 6.0
