    RoHS VESA Mount Windows Android All In One Touch Screen PC

    Ask Lasest Price
    Brand Name : TouchDisplays
    Model Number : 2151E-IOT
    Certification : CE/FCC/RoHS
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 2000 units per month
    • Product Details
    • Company Profile

    RoHS VESA Mount Windows Android All In One Touch Screen PC

    21.5 Inch Windows/Android True Flat Touch Screen All In One Cash Register/Pos Terminal/Pos System


    21.5 inch All In One PC delivers its mission to various fields, opening a gateway to a new trend for self-service meeting 99% customer’s requirements by providing various reliable and stable functional solutions, its unique streamlining bezel-free casing design matching with delicate high resolution LCD screen deliveries customers with a delightful visual feast , and also a variety of peripherals available supporting customers with different utility scenarios.

    RoHS VESA Mount Windows Android All In One Touch Screen PC

    RoHS VESA Mount Windows Android All In One Touch Screen PC

    21.5’’ touch all in one carries TFT LCD panel delivering high resolution up to 1920*1080 to customers, which not only provides a extra-enjoyable experience to customers but also reducing visual fatigue to the most extends.

    2151E Touch All In One PC runs critical applications fast, and processor delivers powerful performance and cost-efficient operation that are enough to run today’s POS applications in retail and hospitality environments.

    RoHS VESA Mount Windows Android All In One Touch Screen PC
    RoHS VESA Mount Windows Android All In One Touch Screen PC

    RoHS VESA Mount Windows Android All In One Touch Screen PC

    INTERFACE


    Multiple I/O interfaces are offered on the terminal including HDMI/VGA, USB, Rj45, Mic and others. Connect it to all the peripheral devices that meet your business needs.

    RoHS VESA Mount Windows Android All In One Touch Screen PC

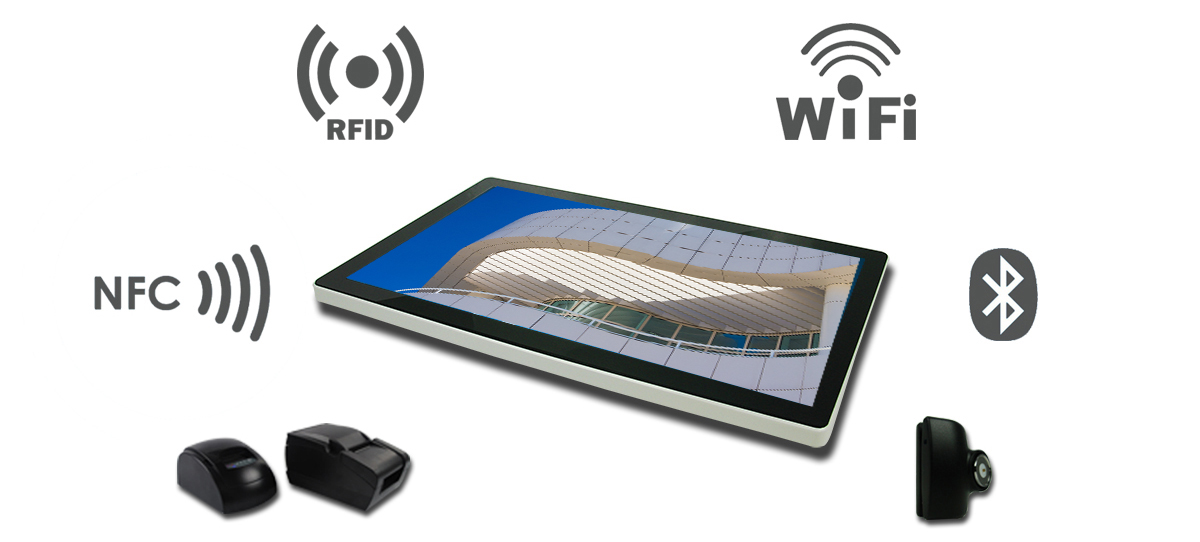

    PERIPHERALS

    21.5 inch touch All in one has Multiple I/O Ports and Peripheral Options delivering to customers with varies of scenario plannings and requirements

    Support 2 line VFD and 10’’, 11.6”, 15.6” LCD customer display.

    More peripherals available like MSR, Camera, RFID, Barcode Scanner, etc.


    APPLICATION

    RoHS VESA Mount Windows Android All In One Touch Screen PC


    SPECIFICATION

    Model2151E-IOT-F
    Case/Bezel ColorBlackwhite
    Display Size21.5″
    Touch panelProjected Capacitive Touch Screen
    Touch points10
    Touch response time8ms
    TouchAIO Dimensions524 x 46 x 315.5 mm
    LCD TypeTFT LCD(LED backlight)
    Useful Screen Area477.8 mm x 269.3 mm
    Aspect ratio16:9
    Optimal (native) Resolution1920*1080
    LCD panel Pixel pitch0.1875 x 0.1875 mm
    LCD panel Colors16.7 million
    LCD panel Brightness250 cd/m2
    LCD panel Response Time16 ms

    Viewing Angle
    (typical, from center)

    Horizontal±89° or 178° total (left/right)
    Vertical±89° or 178° total (up/down)
    Contrast Ratio3000:1
    output Video signal connectorMini D-Sub 15-Pin VGA type and HDMI type
    Interfaceusb 2.0*4(usb 3.0*2 optional)PCI-E(4G SIM card, wifi and Bluetooth optional)
    Earphone*1Mic*1Com*3RJ45*1
    Power Supply TypeMonitor input interface: +12VDC ±5%,6.0 A; DC Jack (2.5)
    AC to DC power brick input: 100-240 VAC, 50/60 Hz
    Power Consumption: 50W

    ECM
    (Embed Computer Modul)

    ECM3: Intel processor J1900 (Quad-core 2.0GHz/2.4GHz,Fanless)
    ECM4: Intel processor i3-4010U (Dual Core 1.7GHz,Fanless)
    ECM5: Intel processor i5-4200U (Dual Core 1.6GHz/2.6GHz Turbo, Fanless)
    ECM6: Intel processor i7-4500U (Dual Core 1.8GHz/3GHz Turbo, Fanless)
    SATA3: HDD 500G(up to 1TB optional) or SDD 32G(up to 128G optional)
    Memory: DDR3 4G(extend up to 16G Optional)
    CPU Upgrade:J3160 & I3-I7 series 5th 6th 7th optional
    Operation System:Win7Pos Ready7Win8XPWinCEVistaLinux
    ECM9: Cortex-A53 8Core 1.5GHz;GPU: PowerVR G6110
    Rom:1G(up to 2G4G optional);Flash:8G(up to 32G optional)
    Operation System: 5.1 or 6.0

    TemperatureOperating: 0°C to 40°C ;Storage -20°C to 60°C
    Humidity (non-condensing)Operating: 20%-80%; Storage: 10%-90%
    Shipping Carton Dimensions620 x 206 x 456 mm (2 PCS)
    Weight (approx.)Product Actual: 5.1 kg(1 Piece) ;Shipping: 13.2 kg( 2 PCS)
    Warranty Monitor3 years(Except for LCD panel 1 year)
    Backlight lamp life: typical 50,000 hours to half brightness
    Agency ApprovalsCE/FCC/RoHS (UL or GS for Customized)
    Mounting Options75 mm and 100 mm VESA mount
