Intel J1900 Core 250cd/㎡ Industrial Touch Screen PC

    Buy cheap Intel J1900 Core 250cd/㎡ Industrial Touch Screen PC from wholesalers

    Buy cheap Intel J1900 Core 250cd/㎡ Industrial Touch Screen PC from wholesalers
    • Buy cheap Intel J1900 Core 250cd/㎡ Industrial Touch Screen PC from wholesalers

    Intel J1900 Core 250cd/㎡ Industrial Touch Screen PC

    Ask Lasest Price
    Brand Name : TouchDisplays
    Model Number : 2151E-IOT
    Certification : CE/FCC/RoHS
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 2000 units per month
    • Product Details
    • Company Profile

    Intel J1900 Core 250cd/㎡ Industrial Touch Screen PC

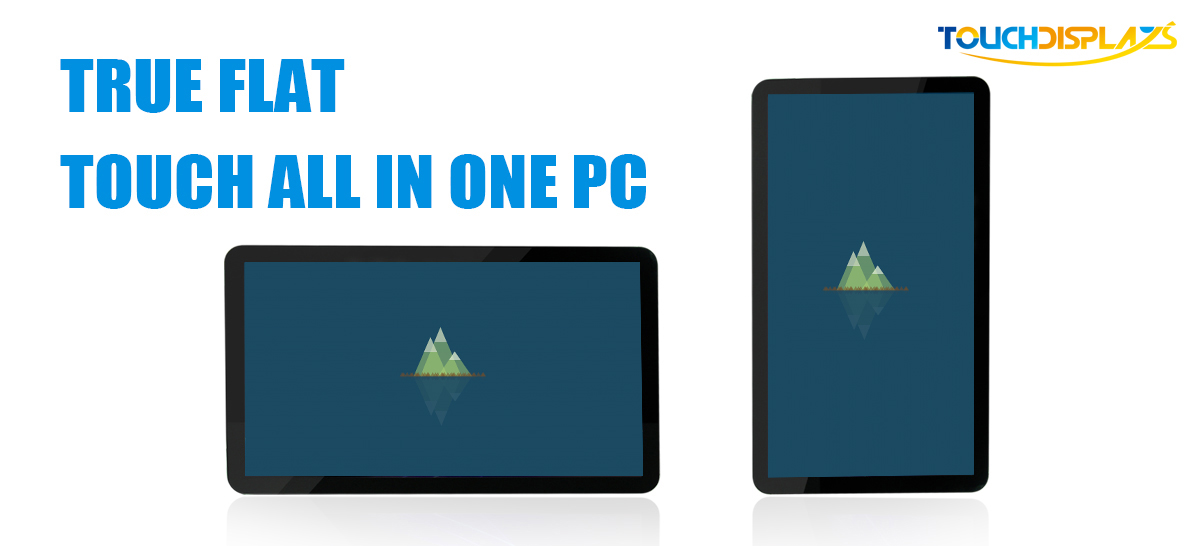

    21.5" LCD TRUE-FLAT INDUSTRIAL OPEN-FRAME MULTIFUNCTIONAL TOUCH INTERACTIVE DIGITAL SIGNAGE SCREEN


    21.5 inch Industrial Interactive Digital Signage open frame delivers its mission to various fields, opening a gateway to a new trend for self-service meeting 99% customer’s requirements by providing various reliable and stable functional solutions, its unique streamlining bezel-free casing design matching with delicate high resolution LCD screen deliveries customers with a delightful visual feast , and also a variety of peripherals available supporting customers with different utility scenarios.

    Intel J1900 Core 250cd/㎡ Industrial Touch Screen PC

    Intel J1900 Core 250cd/㎡ Industrial Touch Screen PC

    Features

    • 21.5 inch wide touchscreen with PCAP and multi-touch technology

    • High quality panel with 178° x 178°true viewing angle

    • Multiple interface for peripherals

    • Bezel-free screen with LED backlight and high resolution 1920*1080

    • 3000:1 contrast ratio, and 250-nit brightness (LCD panel)

    Operational system:

    1.Windows/Linux


    Standard configuration for 21.5 inch touch all in one with windows system incorporates 4Gb DDR3 flash memory, expandable to 32Gb, 60Gb SSD memory, expandable to 480Gb.

    CPU options:

    Option1: Intel processor J1900 (Quad-core 2.0GHz/2.4GHz,Fanless)

    Option2: Intel processor i3-4010U (Dual Core 1.7GHz,Fanless)

    Option3: Intel processor i5-4200U (Dual Core 1.6GHz/2.6GHz Turbo, Fanless)

    Option4: Intel processor i7-4500U (Dual Core 1.8GHz/3GHz Turbo, Fanless)

    Gen. From 4th to 7th for option2~4.


    2.Android system:

    Standard configuration for 21.5 inch touch all in one with Android system incorporates 2Gb flash memory, expandable to 4Gb, 8G memory, expandable to 32Gb.

    CPU options:

    Option2:RK3399 Cortex-A72+Cortex-A53 6-Core 2GHz;GPU:Mail-T860MP4.


    Intel J1900 Core 250cd/㎡ Industrial Touch Screen PC
    Intel J1900 Core 250cd/㎡ Industrial Touch Screen PC

    Intel J1900 Core 250cd/㎡ Industrial Touch Screen PC

    INTERFACE


    Offered multiple interfaces: HDMI/VGA, USB, Rj45, Mic and others, installation of video input and output is quick and easy.

    The powered USB is available for more peripheral connections.

    Intel J1900 Core 250cd/㎡ Industrial Touch Screen PC

    PERIPHERALS


    Beyond the powerful PACP multi touch screen display, multiple peripherals are available to meet all kinds of applications, including near-field communication (NFC/RFID), mag strip reader (MSR) thermal printers and others. Built-in WiFi and bluetooth make it able to be connected anytime and anywhere


    APPLICATION

    Designed specially for retail, hospitality, healthcare, public services and other commercial markets.

    Intel J1900 Core 250cd/㎡ Industrial Touch Screen PC


    SPECIFICATION


    Model2151E-IOT-F
    Case/Bezel ColorBlackwhite
    Display Size21.5″
    Touch panelProjected Capacitive Touch Screen
    Touch points10
    Touch response time8ms
    TouchAIO Dimensions524 x 46 x 315.5 mm
    LCD TypeTFT LCD(LED backlight)
    Useful Screen Area477.8 mm x 269.3 mm
    Aspect ratio16:9
    Optimal (native) Resolution1920*1080
    LCD panel Pixel pitch0.1875 x 0.1875 mm
    LCD panel Colors16.7 million
    LCD panel Brightness250 cd/m2
    LCD panel Response Time16 ms

    Viewing Angle

    (typical, from center)

    Horizontal±89° or 178° total (left/right)
    Vertical±89° or 178° total (up/down)
    Contrast Ratio3000:1
    output Video signal connectorMini D-Sub 15-Pin VGA type and HDMI type
    Interfaceusb 2.0*4(usb 3.0*2 optional)PCI-E(4G SIM card, wifi and Bluetooth optional)
    Earphone*1Mic*1Com*3RJ45*1
    Power Supply TypeMonitor input interface: +12VDC ±5%,6.0 A; DC Jack (2.5)
    AC to DC power brick input: 100-240 VAC, 50/60 Hz
    Power Consumption: 50W

    ECM

    (Embed Computer Modul)

    ECM3: Intel processor J1900 (Quad-core 2.0GHz/2.4GHz,Fanless)

    ECM4: Intel processor i3-4010U (Dual Core 1.7GHz,Fanless)

    ECM5: Intel processor i5-4200U (Dual Core 1.6GHz/2.6GHz Turbo, Fanless)

    ECM6: Intel processor i7-4500U (Dual Core 1.8GHz/3GHz Turbo, Fanless)

    SATA3: HDD 500G(up to 1TB optional) or SDD 32G(up to 128G optional)

    Memory: DDR3 4G(extend up to 16G Optional)

    CPU Upgrade:J3160 & I3-I7 series 5th 6th 7th optional

    Operation System:Win7Pos Ready7Win8XPWinCEVistaLinux

    ECM9: Cortex-A53 8Core 1.5GHz;GPU: PowerVR G6110

    Rom:1G(up to 2G4G optional);Flash:8G(up to 32G optional)

    Operation System: 5.1 or 6.0

    TemperatureOperating: 0°C to 40°C ;Storage -20°C to 60°C
    Humidity (non-condensing)Operating: 20%-80%; Storage: 10%-90%
    Shipping Carton Dimensions620 x 206 x 456 mm (2 PCS)
    Weight (approx.)Product Actual: 5.1 kg(1 Piece) ;Shipping: 13.2 kg( 2 PCS)
    Warranty Monitor3 years(Except for LCD panel 1 year)
    Backlight lamp life: typical 50,000 hours to half brightness
    Agency ApprovalsCE/FCC/RoHS (UL or GS for Customized)
    Mounting Options75 mm and 100 mm VESA mount
