    220cd/M2 1366*768 Restaurant Cash Register Touch Screen

    TOUCHDISPLAYS 1851E RESTAURANT TOUCH SCREEN POS SYSTEMS


    18.5 inch widescreen touchscreen all in one POS is built to withstand the continuous public use with a rugged design.

    Its stylish, slim and modern look, coupled with the extendable customization of more interfaces,

    makes 1851E POS an attractive solution for commercial POS requirements.

    220cd/M2 1366*768 Restaurant Cash Register Touch Screen

    220cd/M2 1366*768 Restaurant Cash Register Touch Screen

    • 18.5" widescreen with PCAP touch



    • Fanless operation with Intel processor



    • Multiple peripherals optional



    • Optimal Resolution 1366*768(16:9)



    • Wide viewing Angle ±85° or 170° total



    HIGH LIGHT

    With an 18.5 inch widescreen and optional anti-glare touch screen, it would be easier to operate and view the content within.



    And as the most cost-effective option in medium-size LCD, 18.5 inch POS would be an economical solution for more end users.


    220cd/M2 1366*768 Restaurant Cash Register Touch Screen
    220cd/M2 1366*768 Restaurant Cash Register Touch Screen

    1851E comes with 4Gb memory, expandable to 8Gb or 32Gb, and 128Gb SSD for reliability.



    CPU options:

    ECM3: Intel processor J1900 (Quad-core 2.0GHz/2.4GHz,Fanless)

    ECM4: Intel processor i3-4010U (Dual Core 1.7GHz,Fanless)

    ECM5: Intel processor i5-4200U (Dual Core 1.6GHz/2.6GHz Turbo, Fanless)

    ECM6: Intel processor i7-4500U (Dual Core 1.8GHz/3GHz Turbo, Fanless)

    Wide ranges intel processor from Gen 4th-7th available.


    Operating system: Windows/ Android/Linux


    Case/Bezel Color : Black/Silvery/white(Customized)


    Display Size : 18.5"


    Optimal Resolution : 1366*768(16:9)


    Wide viewing Angle: ±85° or 170° total


    Operating system : Windows/ Android/Linux


    220cd/M2 1366*768 Restaurant Cash Register Touch Screen

    THE INSTALLATION


    1851E offers multiple mounting options to ensure installation flexibility including: wall, arm and pole mount via standard VESA mount patterns also with the use of the desktop stand.


    FEATURES


    1. Fashionable curving design & exquisite color matching, makes visual sense be satisfied;

    2. Diversified configuration options & external equipment can be extended, meets different requirements of customers;

    3. Concealed wiring, confined space for dust-proof, touch screen pos system can be applied to any environment;

    4. True flat touch screen, easy for maintenance, makes operation simpler.

    220cd/M2 1366*768 Restaurant Cash Register Touch Screen

    220cd/M2 1366*768 Restaurant Cash Register Touch Screen

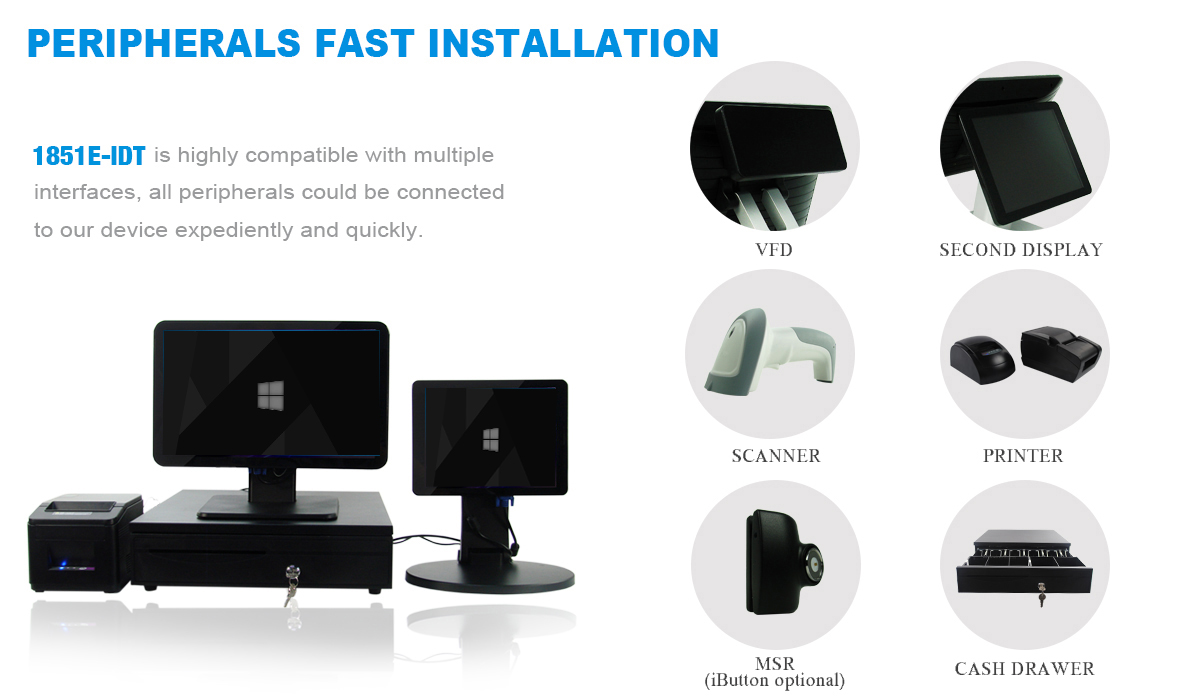

    Support 2 line VFD and 11.6” &15.6” LCD customer display.

    And more peripherals available like MSR, Camera, RFID, Barcode Scanner and so on.


    INTERFACE

    220cd/M2 1366*768 Restaurant Cash Register Touch Screen


    APPLICATION


    220cd/M2 1366*768 Restaurant Cash Register Touch Screen


    SPECIFICATION


    Model1561E-IDT
    Case/Bezel ColorBlack/Silvery/white(Customized)
    Display Size15.6"
    StyleTrue Flat
    Touch panel (True-flat Style)Projected Capacitive touch screen (Resistive touch screen optional)
    Touch response time8ms
    Touchcomputors Dimensions391.6x 201.1 x 318 mm
    LCD TypeTFT LCD(LED backlight)
    Useful Screen Area345.5 mm x 195 mm
    Aspect ratio16:9
    Optimal (native) Resolution1920 x 1080
    LCD panel Pixel pitch0.17925 x 0.17925 mm
    LCD panel Colors6bit Hi-FRC
    LCD panel Brightness220 cd/m2
    LCD panel Contrast Ratio500:1
    LCD panel Response Time12 ms
    Viewing AngleHorizontal±45° or 90° total
    (typical, from center)Vertical-20°~+40° or 60° total
    output Video signal connectorMini D-Sub 15-Pin VGA type and HDMI type
    Input interface2*USB 2.0 & 2*USB 3.0 & 2*COM(3*COM optional)
    1*Earphone1*Mic1*RJ45(2*RJ45 optional)
    Extend interface2*USB2.02*COM1*PLT2*PCI-E(4G SIM card, 2.4G&5G wifi & Bluetooth module optional)
    Power Supply TypeMonitor input: +12VDC ±5%,5.0 A; DC Jack (2.5¢)
    AC to DC power brick input: 90-240 VAC, 50/60 Hz
    Power Consumption: less than 60W
    ECM (Embed Computer Modul)ECM2: Intel processor J1800 (Dual Core 2.41GHz,Fanless)
    ECM3: Intel processor J1900 (Quad-core 2.0GHz/2.4GHz,Fanless)
    ECM4: Intel processor i3-4010U (Dual Core 1.7GHz,Fanless)
    ECM5: Intel processor i5-4200U (Dual Core 1.6GHz/2.6GHz Turbo, Fanless)
    ECM6: Intel processor i7-4500U (Dual Core 1.8GHz/3GHz Turbo, Fanless)
    CPU Upgrade:3855U & I3-I7 series 5th 6th 7th optional
    SATA3:HDD 500G(up to 1TB optional);SDD 32G(up to 128G optional)
    Memory: DDR3 4G(extend up to 16G Optional)
    ECM8: RK3288 Cortex-A17 quad-core 1.8G, GPU:Mali-T764;Operation System: 5.1
    ECM9: RK3368 Cortex-A53 8Core 1.5GHz;GPU:PowerVR G6110;Operation System: 6.0
    ECM10:RK3399 Cortex-A72+Cortex-A53 6-Core 2GHz;GPU:Mail-T860MP4;Operation System: 7.1
    Rom:2G(up to 4G optional);Flash:8G(up to 32G optional)
    TemperatureOperating: 0°C to 40°C ;Storage -20°C to 60°C
    Humidity (non condensing)Operating: 20%-80%; Storage: 10%-90%
    Shipping Carton Dimensions450 x 280 x 470 mm(with stand);470 x 210 x 420 mm(without stand)
    Weight (approx.)Actual: 6.8 kg ;Shipping: 8.2 kg
    Warranty Monitor3 years(Except for LCD panel 1 year)
    Backlight lamp life: typical 50,000 hours to half brightness
    Agency ApprovalsCE/FCC RoHS (UL & GS customized)
    Mounting Options75 mm and 100mm VESA mount(Remove Stood)
