RoHS 18.5'' 10 Points Touch Screen POS System For Supermaket Retail

    Buy cheap RoHS 18.5'' 10 Points Touch Screen POS System For Supermaket Retail from wholesalers

    Buy cheap RoHS 18.5'' 10 Points Touch Screen POS System For Supermaket Retail from wholesalers
    • Buy cheap RoHS 18.5'' 10 Points Touch Screen POS System For Supermaket Retail from wholesalers

    RoHS 18.5'' 10 Points Touch Screen POS System For Supermaket Retail

    Ask Lasest Price
    Brand Name : TouchDisplays
    Model Number : 1851E-IDT
    Certification : CE FCC ROHS
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 2000 units per month
    • Product Details
    • Company Profile

    RoHS 18.5'' 10 Points Touch Screen POS System For Supermaket Retail

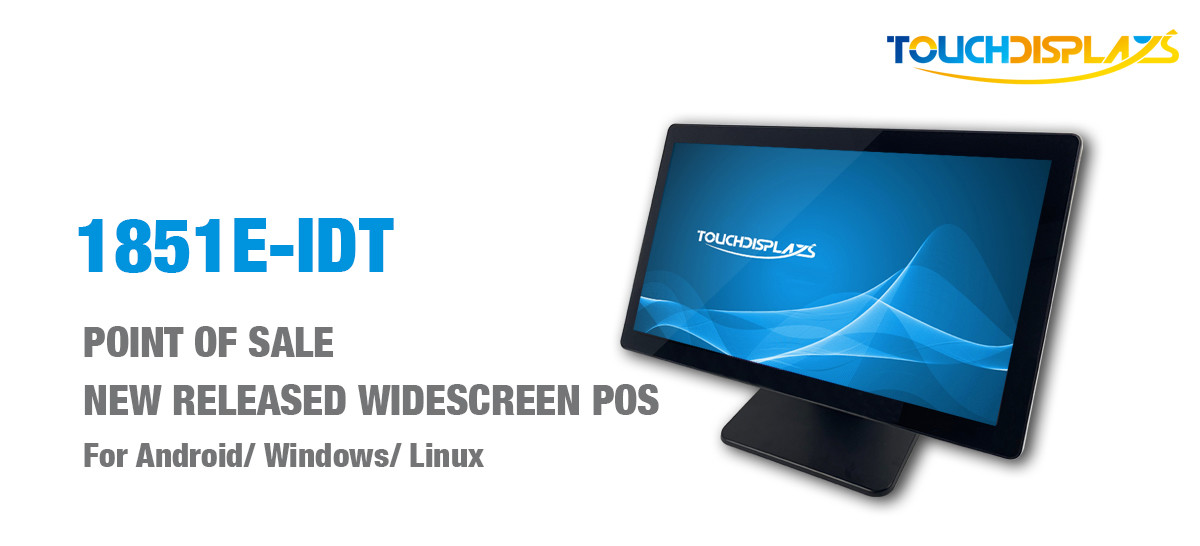

    18.5 inch TOUCHSCREEN POS SYSTEM


    18.5 inch widescreen touchscreen all in one POS is built to withstand the continuous public use with a rugged design.

    Its stylish, slim and modern look, coupled with the extendable customization of more interfaces,

    makes 1851E POS an attractive solution for commercial POS requirements.

    RoHS 18.5'' 10 Points Touch Screen POS System For Supermaket Retail

    RoHS 18.5'' 10 Points Touch Screen POS System For Supermaket Retail

    • 18.5" widescreen with PCAP touch



    • Fanless operation with Intel processor



    • Multiple peripherals optional



    • Optimal Resolution 1366*768(16:9)



    • Wide viewing Angle ±85° or 170° total



    HIGH LIGHT

    With an 18.5 inch widescreen and optional anti-glare touch screen, it would be easier to operate and view the content within.



    And as the most cost-effective option in medium-size LCD, 18.5 inch POS machine would be an economical solution for more end users.


    RoHS 18.5'' 10 Points Touch Screen POS System For Supermaket Retail
    RoHS 18.5'' 10 Points Touch Screen POS System For Supermaket Retail

    1851E comes with 4Gb memory, expandable to 8Gb or 32Gb, and 128Gb SSD for reliability.



    CPU options:

    ECM3: Intel processor J1900 (Quad-core 2.0GHz/2.4GHz,Fanless)

    ECM4: Intel processor i3-4010U (Dual Core 1.7GHz,Fanless)

    ECM5: Intel processor i5-4200U (Dual Core 1.6GHz/2.6GHz Turbo, Fanless)

    ECM6: Intel processor i7-4500U (Dual Core 1.8GHz/3GHz Turbo, Fanless)

    Wide ranges intel processor from Gen 4th-7th available.



    Operating system:

    Windows/ Android/Linux




    RoHS 18.5'' 10 Points Touch Screen POS System For Supermaket Retail

    THE INSTALLATION


    1851E offers multiple mounting options to ensure installation flexibility including: wall, arm and pole mount via standard VESA mount patterns also with the use of the desktop stand.

    RoHS 18.5'' 10 Points Touch Screen POS System For Supermaket Retail

    RoHS 18.5'' 10 Points Touch Screen POS System For Supermaket Retail

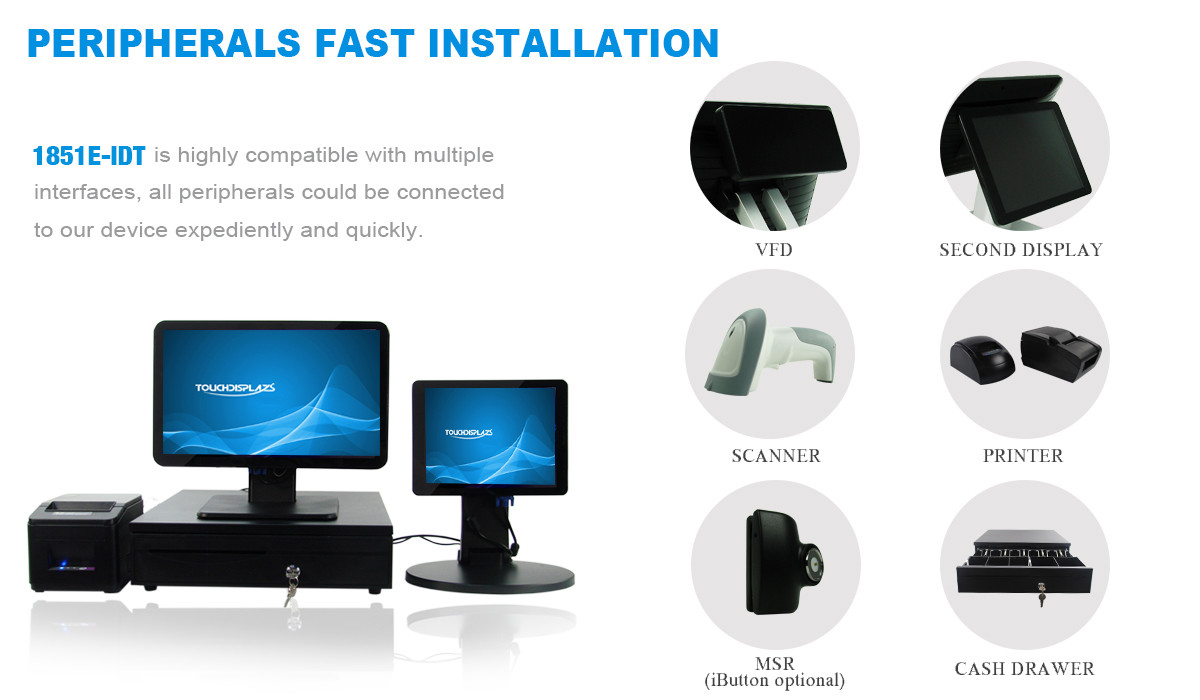

    Support 2 line VFD and 11.6” LCD customer display.

    And more peripherals available like MSR, Camera, RFID, Barcode Scanner and so on.


    INTERFACE

    RoHS 18.5'' 10 Points Touch Screen POS System For Supermaket Retail


    APPLICATION


    RoHS 18.5'' 10 Points Touch Screen POS System For Supermaket Retail


    SPECIFICATION


    Model1851E-IDT
    Case/Bezel ColorBlack/Silvery/white(Customized)
    Display Size18.5"
    Touch panelProjected Capacitive touch screen
    Touch response time8ms
    Touchcomputors Dimensions460.83 x 232.48 x 335.11 mm
    LCD TypeTFT LCD(LED backlight)
    Useful Screen Area409.8 mm x 230.4 mm
    Aspect ratio16:9
    Optimal (native) Resolution1366 x 768
    LCD panel Pixel pitch0.3 x 0.3mm
    LCD panel Colors Depth16.7M
    LCD panel Brightness250 cd/
    LCD panel Response Time14 ms
    Viewing Angle
    (typical, from center)
    Horizontal±80° or 160° total
    Vertical±80° or 160° total
    Contrast Ratio1000:1
    output Video connectorMini D-Sub 15-Pin VGA type and HDMI type (optional)
    Input interfaceusb 2.0*2 & usb 3.0*2 & 2*COM(3*COM optional)
    1*Earphone1*Mic1*RJ45(2*RJ45 optional)
    Extend interfaceusb2.0usb3.0comPCI-E(4G SIM card, wifi 2.4G&5G & Bluetooth module optional)M.2(for CPU J4125)
    Power Supply TypeMonitor input: +12V DC ±5%,5.0 A; DC Jack(2.5)
    AC to DC power brick input: 90-240 VAC, 50/60 Hz
    Power Consumption: Less than 40W
    ECM
    (Embed Computer Module)
    ECM3: Intel processor (J1900&J4125)
    ECM4: Intel processor i3(4th -10th) or 3965U
    ECM5: Intel processor i5(4th -10th)
    ECM6: Intel processor i7(4th -10th)
    Memory:DDR3 4G-16G Optional;DDR4 4G-16G Optional (Only for CPU J4125) ;
    Storage:Msata SSD 64G-960G optional or HDD 1T-2TB optional;
    ECM8: RK3288; Rom:2G; Flash:16G; Operation System: 7.1
    ECM10: RK3399; Rom:4G; Flash:16G; Operation System: 9.0
    TemperatureOperating: 0°C to 40°C ;Storage -20°C to 60°C
    Humidity (non condensing)Operating: 20%-80%; Storage: 10%-90%
    Shipping Carton Dimensions540*260*426 mm(with stand)
    Weight (approx.)Actual: 6.65 kg ;Shipping: 7 kg
    Warranty Monitor3 years(Except for LCD panel 1 year)
    Backlight lamp life: typical15,000 hours to half brightness
    Agency ApprovalsCE/FCC/RoHS (UL & GS & CB & TUV customized)
    Mounting Options75 mm and 100mm VESA mount
