FCC Intel i3 Dual Touch Screen POS Terminal with MSATA 128GB SSD

    Buy cheap FCC Intel i3 Dual Touch Screen POS Terminal with MSATA 128GB SSD from wholesalers

    Buy cheap FCC Intel i3 Dual Touch Screen POS Terminal with MSATA 128GB SSD from wholesalers
    • Buy cheap FCC Intel i3 Dual Touch Screen POS Terminal with MSATA 128GB SSD from wholesalers

    FCC Intel i3 Dual Touch Screen POS Terminal with MSATA 128GB SSD

    Ask Lasest Price
    Brand Name : TouchDisplays
    Model Number : 1561E-IDT
    Certification : CE/FCC RoHS (UL & GS customized)
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 2000 units per month
    • Product Details
    • Company Profile

    FCC Intel i3 Dual Touch Screen POS Terminal with MSATA 128GB SSD

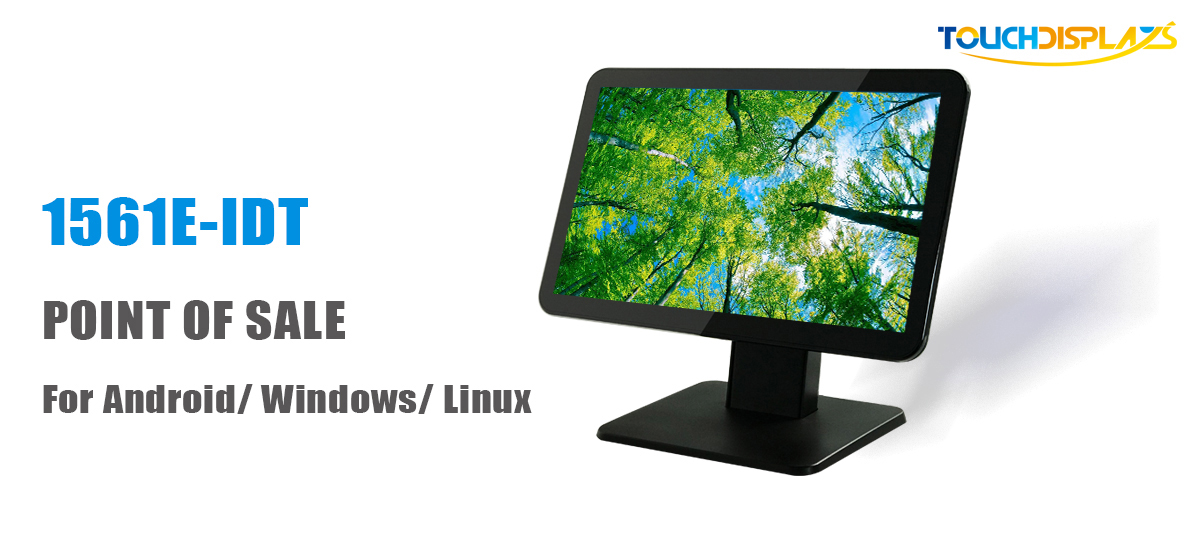

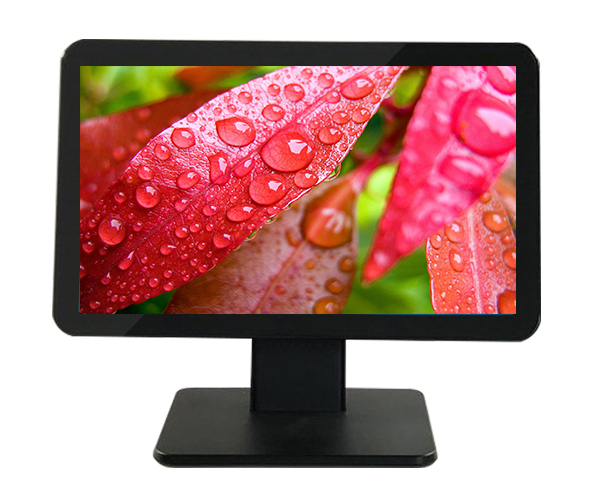

    15.61 Inch Dual Touch Screen POS Terminal


    1561E series POS terminal is a high cost effective product with wide screen and high resolution.The HD display and powerful fanless processors with projected capacitive touch screens.

    Different kinds of processor options and full compatibility with multiple accessories, which can be adapted to different kinds of appliacations.


    · Rotatable screen adapts to different kinds of using habbits.



    · Projected capacitive touch screen with many sizes.



    · Concealed wiring, confined space for water-proof.



    · Bezel-free PCAP touch screen POS terminal.



    · well designed portrait screens meet different kinds of requirements you need.



    FCC Intel i3 Dual Touch Screen POS Terminal with MSATA 128GB SSD

    STYLISH PORTRAIT SCREENS


    Special and high-end designs is our portrait POS system characters.


    It’s unique and stylish in the way you define yourself.

    It saves space and gives your a comfortable operating experience

    FCC Intel i3 Dual Touch Screen POS Terminal with MSATA 128GB SSD

    Perfectly powerful processors with fanless low consumption ;


    Flexible CPU options for all Android versions;


    Different kinds of mainborad from Intel j1800 to i7 latest 7th generation for windows.


    1561E POS runs critical applications fast, serve your customer operating expiereince with faster feelings.


    Fanless processor thus low consumption and a noiseless surrounding.


    ROTATABLE DISPLAY SCREEN


    Our POS is in the function of a rotatable display head,


    You can use the best viewing angle, and best position for a perfect operating experience.

    FCC Intel i3 Dual Touch Screen POS Terminal with MSATA 128GB SSD
    FCC Intel i3 Dual Touch Screen POS Terminal with MSATA 128GB SSD

    FCC Intel i3 Dual Touch Screen POS Terminal with MSATA 128GB SSD

    1561E is designed with projected capacitive screen, delivers a quick response and support multi- points touch.

    15.6 inch has wide screens with 1366*768 or 1920*1080 resolution.

    FCC Intel i3 Dual Touch Screen POS Terminal with MSATA 128GB SSD

    SUPER SLIM DISPLAY HEAD

    WITH ZERO-BEZEL AND TRUE-FLAT SCREEN


    1561E is as powerful as 1515E series,but provide more options for our customers, we design it with wide screen and HD resolution, the display head is extremely slim with a concise design outlook.

    FCC Intel i3 Dual Touch Screen POS Terminal with MSATA 128GB SSD

    INTERFACE

    Offered multiple I/O interfaces , including USB ports, Mic, Rj45 ports and more.

    The powered USB is available for more peripheral connections.

    And owning to the multiple interface design peripherals,1561E have a very convinient installation and uninstallation in quick and easy ways.


    APPLICATIONS

    With special compatible layouts, TouchDisplays POS machines are built and crafted to adapt to any critical environment.

    FCC Intel i3 Dual Touch Screen POS Terminal with MSATA 128GB SSD

    SPECIFICATION


    Model1561E-IDT
    Case/Bezel ColorBlack/Silvery/white(Customized)
    Display Size15.6"
    StyleTrue Flat
    Touch panel (True-flat Style)Projected Capacitive touch screen (Resistive touch screen optional)
    Touch response time8ms
    Touchcomputors Dimensions391.6x 201.1 x 318 mm
    LCD TypeTFT LCD(LED backlight)
    Useful Screen Area345.5 mm x 195 mm
    Aspect ratio16:9
    Optimal (native) Resolution1920 x 1080
    LCD panel Pixel pitch0.17925 x 0.17925 mm
    LCD panel Colors6bit Hi-FRC
    LCD panel Brightness220 cd/m2
    LCD panel Contrast Ratio500:1
    LCD panel Response Time12 ms
    Viewing AngleHorizontal±45° or 90° total
    (typical, from center)Vertical-20°~+40° or 60° total
    output Video signal connectorMini D-Sub 15-Pin VGA type and HDMI type
    Input interface2*USB 2.0 & 2*USB 3.0 & 2*COM(3*COM optional)
    1*Earphone1*Mic1*RJ45(2*RJ45 optional)
    Extend interface2*USB2.02*COM1*PLT2*PCI-E(4G SIM card, 2.4G&5G wifi & Bluetooth module optional)
    Power Supply TypeMonitor input: +12VDC ±5%,5.0 A; DC Jack (2.5¢)
    AC to DC power brick input: 90-240 VAC, 50/60 Hz
    Power Consumption: less than 60W
    ECM (Embed Computer Modul)ECM2: Intel processor J1800 (Dual Core 2.41GHz,Fanless)
    ECM3: Intel processor J1900 (Quad-core 2.0GHz/2.4GHz,Fanless)
    ECM4: Intel processor i3-4010U (Dual Core 1.7GHz,Fanless)
    ECM5: Intel processor i5-4200U (Dual Core 1.6GHz/2.6GHz Turbo, Fanless)
    ECM6: Intel processor i7-4500U (Dual Core 1.8GHz/3GHz Turbo, Fanless)
    CPU Upgrade:3855U & I3-I7 series 5th 6th 7th optional
    SATA3:HDD 500G(up to 1TB optional);SDD 32G(up to 128G optional)
    Memory: DDR3 4G(extend up to 16G Optional)
    ECM8: RK3288 Cortex-A17 quad-core 1.8G, GPU:Mali-T764;Operation System: 5.1
    ECM9: RK3368 Cortex-A53 8Core 1.5GHz;GPU:PowerVR G6110;Operation System: 6.0
    ECM10:RK3399 Cortex-A72+Cortex-A53 6-Core 2GHz;GPU:Mail-T860MP4;Operation System: 7.1
    Rom:2G(up to 4G optional);Flash:8G(up to 32G optional)
    TemperatureOperating: 0°C to 40°C ;Storage -20°C to 60°C
    Humidity (non condensing)Operating: 20%-80%; Storage: 10%-90%
    Shipping Carton Dimensions450 x 280 x 470 mm(with stand);470 x 210 x 420 mm(without stand)
    Weight (approx.)Actual: 6.8 kg ;Shipping: 8.2 kg
    Warranty Monitor3 years(Except for LCD panel 1 year)
    Backlight lamp life: typical 50,000 hours to half brightness
    Agency ApprovalsCE/FCC RoHS (UL & GS customized)
    Mounting Options75 mm and 100mm VESA mount(Remove Stood)
